2012 2013 Toyota Hilux Vigo Champ Double Cab on Sale For Sale at Thailand Top Car Van Truck and Bus Dealer Exporter 2010 2009 Toyota Hilux Vigo Double Cab Pickup 4x4 4x2 Single Cab, Extra Cab Smart Cab Import Export For sale at Thailand's top car dealer, importer, exporter Jim Autos Thailand. Used Hilux available for sale at Jim Autos United Kingdom
Jim Autos Thailand is proud to be Thailand's largest, Singapore's, United Kingdom UK's and Dubai's largest exporter of Double Cab Toyota Hilux Vigo while Jim 4x4 Thailand is Thailand's largest exporter of nearly new or quality used 2004 2005 2006 2007 2008 Double Cab Toyota Hilux Vigo or 1998 1999, 2000, 2001, 2002, 2003 and 2004 Toyota Hilux Tiger. Please note that it is Double Cab and not Double Cap as some have been known to misspell it. A double cab pickup light commercial vehicle with a double drivers cab (rear row of seats) and a open cargo area with high sides and a rear folding tailgate.
Click here for info on 2012 2013 Toyota Hilux Vigo and here for info on 2012 2013 2011 Toyota Hilux Vigo Single Cab and Extra Cab, 2102 2013 2011 Toyota Hilux Vigo Smart Extra Cab and 2012 2013 2011 Toyota Hilux Vigo Double Cab.
If you are looking for used minor change 2009 2010 2011, please click here for info on 2009 2010 2011 Toyota Hilux Vigo and here for info on 2009 2010 2011 Toyota Hilux Vigo Single Cab and Extra Cab, 2009 2010 2011 Toyota Hilux Vigo Smart Extra Cab and 2009 2010 2011 Toyota Hilux Vigo Double Cab. Click here for the main Vigo page. Pics of some of the vehicles we have recently exported are at http://thailand-dealer.com/pics.html. Toyota Vigo remains our top seller since its release in late 2004. Vigo both new and used are still selling like hotcakes from Africa to the Americas.

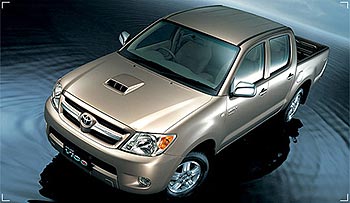

2012 2013 Toyota Hilux Vigo Double Cab available for sale on Sale at Thailand top Dealer
2012 2013 Toyota Hilux Vigo Double Cab especially Toyota Hilux Vigo Double Cab 4x4 in manual and Auto are the best selling Toyota Hilux Vigo.
Toyota Hilux Vigo 2012 Double Cab 4x2 2500 cc and 3000 cc 2 Wheel Drive Specifications
| Toyota Hilux Vigo Grades | 4x2 3.0G Auto | 4x2 2.5G | 4x2 2.5E | 4x2 2.5J-PS |
|---|---|---|---|---|
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
| Dimension and Weight | ||||
| Overall Length x Width x Height (mm.) | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
| Tread Front x Rear (mm.) | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 |
| Min. Ground Clearance (mm.) | 181 | 181 | 181 | 181 |
| Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
| Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
| Weight (kg.) | 1680 | 1615 | 1615 | 1615 |
| Engine | ||||
| Model | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo |
| Displacement (cc.) | 2982 | 2494 | 2494 | 2494 |
| Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 | 92.0 x 93.8 |
| Compression Ratio | 17.9 : 1 | 17.4 : 1 | 17.4 : 1 | 18.5:1 |
| Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 106 (144) / 3,400 | 106 (144) / 3,400 | 75 (102) / 3,600 |
| Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 343 / 1,600-2,800 | 200 / 1,400-3,400 |
| Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
| Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
| Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Transmission & Chassis | ||||
| Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 3.928 |
| Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.333 |
| Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.451 |
| Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
| Gear Ratio 5 | - | 0.788 | 0.788 | 0.798 |
| Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.743 |
| Center differential | 3.727 | 3.583 | 3.583 | 4.1 |
| Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
| Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Min. Turning Radius (m.) | 5.9 | 5.9 | 5.9 | 5.9 |
| Power Steering Type | yes | yes | yes | yes |
| Tires | 215 / 65R16C | 215 / 65R16C | 215 / 65R16C | 205 / 70R15C |
| Wheel | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Steel wheel with full cap (6JJx15 inches size) |
| Spare Tire | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 205 / 70R15C |
| Exterior | ||||
| Front Bumper | Color key | Color key | Color key | Color key |
| Rear Bumper | Chromium | Chromium |  |
|
| Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Black and Grey |
| Turbo Scoop |  |
|
|
|
| Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
| Front Fog Light | |
|
|
|
| Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
| Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
| Side Step | |
|
|
|
| Fender Flare | |
|
|
|
| Mudguard | Front and rear | Front and rear | Front and rear | Front and rear |
| Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | 3 step adjustable |

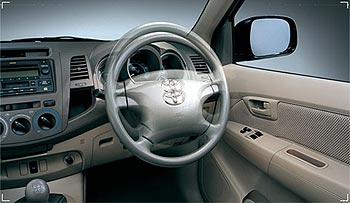

| Interior | ||||
| Optitron Meter | |
|
|
|
| RPM Gauge | |
|
|
|
| Distance Meter | Digital | Digital | Digital | Digital |
| Multi Information Display | |
|
|
|
| 4x4 Indication Light | |
|
|
|
| Fuel Gauge | |
|
|
|
| Fuel Filter Indicator | |
|
|
|
| Headlamp Alarm | |
|
|
|
| Key Alarm | |
|
|
|
| Door Status Warning Lights | |
|
|
|
| Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
| Digital Clock | |
|
|
|
| Map Lamp (Front) | |
|
|
|
| Illumination System | |
|
|
|
| Key Switch Lamp | |
|
|
|
| Ash Tray | With lamp | With lamp | With lamp | Without lamp |
| Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
| Audio | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
| USB / AUX Port | |
|
|
|
| Speakers | 6 | 4 | 4 | 4 |
| Antenna | Foldable | Foldable | Foldable | Foldable |
| Bluetooth | |
|
|
|
| Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
| Adjustable Steering Wheel | |
|
|
|
| Steering Wheel Material | 4 spoke urethan, metallic, with audio controller and MID | 4 spoke urethan, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane |
| Cruise Control | |
|
|
|
| Hand Brake | At center console | At center console | At center console | At center console |
| Gear Knob | Urethane | Urethane | Urethane | Urethane |
| 4x4 Transmission Knob | |
|
|
|
| Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
| Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | Without mirror |
| Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
| Central Lock | |
|
|
|
| Remote Key | |
|
|
|
| Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
| 12 V. Outlets | |
|
|
|
| Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
| Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
| Door Panel Switch | Metallic | Metallic | Metallic | Console panel color |
| Front Console | Metallic | Metallic | Metallic | Console panel color |
| Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Seat Type | Split Type | Split Type | Split Type | Split Type |
| Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet | Grey Semi Velvet |
| Adjustable Front Seat | |
|
|
|
| Leanable Front Seat | |
|
|
|
| Height Adjustable Front Seat (Driver) | |
|
|
|
| Seat Pillow | |
|
|
|
| Passenger Seat | Foldable | Foldable | Foldable | Foldable |
| Passenger Seat Pillow | |
|
|
|
| Fuel Cover Lever | |
|
|
|
| Center Console Box | With cover lid | With cover lid | With cover lid | Without cover lid |
| Upper Box | |
|
|
|
| Front Console Box | With key lock | With key lock | With key lock | With key lock |
| Glasses Console Box | At map lamp position | At map lamp position | At map lamp position | |
| Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
| Glass Holder | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console |
| Footrest | |
|
|
|
| Safety | ||||
| ABS (Anti-Lock Braking System) | |
|
|
|
| Hi Mouth Stop Lamp | |
|
|
|
| Rear Window Defogger | |
|
|
|
| Back camera | |
|
|
|
| Crash Body Safety GOA | |
|
|
|
| Side Bar Protection | Front and rear | Front and rear | Front and rear | Front and rear |
| Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint | Laminated |
| SRS Airbag | Driver and front passenger | Driver and front passenger | |
|
| Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
| Rear Seatbelt | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
| Adjustable Seat Belt | 1 position | 1 position | 1 position | 1 position |
| Absorbing Door Structure | Driver and front passenger | Driver and front passenger | Driver and front passenger | Driver and front passenger |
| Collapsible Steering Column | |
|
|
|
| Collapsible Brake Pad | |
|
|
|
| Automatic Fuel Cut - Off Valve | |
|
|
|
Toyota Hilux Vigo 2012 Double Cab 4x2 Prerunner (2x4) 2500 cc and 3000 cc 2 Wheel Drive Raised to the Height of 4x4 Specifications
| Toyota Hilux Vigo Grades | Prerunner 3.0G Auto | Prerunner 3.0G | Prerunner 2.5E ABS | Prerunner 2.5E |
|---|---|---|---|---|
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
| Dimension and Weight | ||||
| Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
| Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 |
| Min. Ground Clearance (mm.) | 222 | 222 | 222 | 222 |
| Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
| Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
| Weight (kg.) | 1780 | 1730 | 1650 | 1650 |
| Engine | ||||
| Model | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo Intercooler |
| Displacement (cc.) | 2982 | 2982 | 2494 | 2494 |
| Bore x Stroke (mm.) | 96.0 x 103.0 | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 |
| Compression Ratio | 17.9 : 1 | 17.9 : 1 | 17.4 : 1 | 18.5 : 1 |
| Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 120 (163) / 3,400 | 106 (144) / 3,400 | 88 (120) / 3,600 |
| Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 325 / 2,000 |
| Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
| Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
| Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel |
| Transmission & Chassis | ||||
| Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 4.313 |
| Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.33 |
| Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.436 |
| Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
| Gear Ratio 5 | - | 0.838 | 0.788 | 0.788 |
| Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.22 |
| Center differential | 3.909 | 3.727 | 3.727 | 3.727 |
| Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
| Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Min. Turning Radius (m.) | 6.3 | 6.3 | 6.3 | 6.3 |
| Power Steering Type | yes | yes | yes | yes |
| Tires | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 |
| Wheel | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches |
| Spare Tire | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 |
| Exterior | ||||
| Front Bumper | Color key | Color key | Color key | Color key |
| Rear Bumper | Chromium | Chromium | Chromium | Chromium |
| Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
| Turbo Scoop | |
|
|
|
| Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
| Front Fog Light | |
|
|
|
| Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
| Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
| Side Step | |
|
|
|
| Fender Flare | Color key | Color key | Color key | Color key |
| Mudguard | Rear only | Rear only | Rear only | Rear only |
| Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | Time intermittent |
| Interior | ||||
| Optitron Meter | |
|
|
|
| RPM Gauge | |
|
|
|
| Distance Meter | Digital | Digital | Digital | Digital |
| Multi Information Display | |
|
|
|
| 4x4 Indication Light | |
|
|
|
| Fuel Gauge | |
|
|
|
| Fuel Filter Indicator | |
|
|
|
| Headlamp Alarm | |
|
|
|
| Key Alarm | |
|
|
|
| Door Status Warning Lights | |
|
|
|
| Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
| Digital Clock | |
|
|
|
| Map Lamp (Front) | |
|
|
|
| Illumination System | |
|
|
|
| Key Switch Lamp | |
|
|
|
| Ash Tray | With lamp | With lamp | With lamp | With lamp |
| Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
| Audio | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
| USB / AUX Port | |
|
|
|
| Speakers | 6 | 6 | 4 | 4 |
| Antenna | Foldable | Foldable | Foldable | Foldable |
| Bluetooth | |
|
||
| Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
| Adjustable Steering Wheel | |
|
|
|
| Steering Wheel Material | 4 spoke urethane, metallic, with audio controller and MID | 4 spoke urethane, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane, metallic |
| Cruise Control | |
|
|
|
| Hand Brake | At center console | At center console | At center console | At center console |
| Gear Knob | Urethane | Urethane | Urethane | Urethane |
| 4x4 Transmission Knob | |
|
|
|
| Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
| Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | With mirror and lid |
| Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
| Central Lock | |
|
|
|
| Remote Key | |
|
|
|
| Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
| 12 V. Outlets | |
|
|
|
| Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
| Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
| Door Panel Switch | Metallic | Metallic | Metallic | Metallic |
| Front Console | Metallic | Metallic | Metallic | Metallic |
| Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Seat Type | Split Type | Split Type | Split Type | Split Type |
| Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet |
| Adjustable Front Seat | |
|
|
|
| Leanable Front Seat | |
|
|
|
| Height Adjustable Front Seat (Driver) | |
|
|
|
| Seat Pillow | |
|
|
|
| Passenger Seat | Foldable | Foldable | Foldable | Foldable |
| Passenger Seat Pillow | |
|
|
|
| Fuel Cover Lever | |
|
|
|
| Center Console Box | With cover lid | With cover lid | With cover lid | With cover lid |
| Upper Box | |
|
|
|
| Front Console Box | With key lock | With key lock | With key lock | With key lock |
| Glasses Console Box | At map lamp position | At map lamp position | At map lamp position | At map lamp position |
| Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
| Glass Holder | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger |
| Footrest | |
|
|
|
| Safety | ||||
| ABS (Anti-Lock Braking System) | |
|
|
|
| Hi Mouth Stop Lamp | |
|
|
|
| Rear Window Defogger | |
|
|
|
| Back camera | |
|
|
|
| Crash Body Safety GOA | |
|
|
|
| Side Bar Protection | Front and rear | Front and rear | Front and rear | Front and rear |
| Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint | Laminated with tint |
| SRS Airbag | Driver and front passenger | Driver and front passenger | |
|
| Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
| Rear Seatbelt | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
| Adjustable Seat Belt | 1 position | 1 position | 1 position | 1 position |
| Absorbing Door Structure | Driver and front passenger | Driver and front passenger | Driver and front passenger | Driver and front passenger |
| Collapsible Steering Column | |
|
|
|
| Collapsible Brake Pad | |
|
|
|
| Automatic Fuel Cut - Off Valve | |
|
|
|
Toyota Hilux Vigo 2012 Double Cab 4x2 2500 cc and 3000 cc 2 Wheel Drive Specifications
| Toyota Hilux Vigo Grades | 4x4 3.0G Auto | 4x4 3.0G | 4x4 2.5E | 4x2 2.7E VVT-i |
|---|---|---|---|---|
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
| Dimension and Weight | ||||
| Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,760 x 1,735 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
| Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 | 1,510 / 1,510 |
| Min. Ground Clearance (mm.) | 222 | 222 | 222 | 181 |
| Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
| Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
| Weight (kg.) | 1870 | 1845 | 1825 | 1635 |
| Engine | ||||
| Model | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2TR-FE |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VVT-i |
| Displacement (cc.) | 2982 | 2982 | 2494 | 2694 |
| Bore x Stroke (mm.) | 96.0 x 103.0 | 96.0 x 103.0 | 92.0 x 93.8 | 95.0 x 95.0 |
| Compression Ratio | 17.9:1 | 17.9:1 | 17.4 : 1 | 9.6 : 1 |
| Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 120 (163) / 3,400 | 106 (144) / 3,400 | 118 (160) / 5,200 |
| Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 241 / 3,800 |
| Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | EFI |
| Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
| Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
| Fuel Type | Diesel | Diesel | Diesel | Benzene 91 or above |
| Transmission & Chassis | ||||
| Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 3.83 |
| Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.062 |
| Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.436 |
| Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
| Gear Ratio 5 | - | 0.838 | 0.788 | 0.838 |
| Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.22 |
| Center differential | 3.909 | 3.583 | 3.727 | 4.1 |
| Front suspension | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer |
| Rear suspension | Rigid type and leaf spring with limited slip | Rigid type and leaf spring with limited slip | Rigid type and Leaf spring with limited slip | Rigid type and leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
| Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Min. Turning Radius (m.) | 6.4 | 6.4 | 6.4 | 5.9 |
| Power Steering Type | yes | yes | yes | yes |
| Tires | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 | 215 / 65R16C |
| Wheel | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 6Jx16 inches |
| Spare Tire | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 215/65R16C |
| Exterior | ||||
| Front Bumper | Color key | Color key | Color key | Color key |
| Rear Bumper | Chromium | Chromium | Chromium | |
| Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
| Turbo Scoop | |
|
|
|
| Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
| Front Fog Light | |
|
|
|
| Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
| Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
| Side Step | |
|
|
|
| Fender Flare | Color key | Color key | Color key | |
| Mudguard | Rear only | Rear only | Rear only | Front and rear |
| Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | Time intermittent |
| Interior | ||||
| Optitron Meter | |
|
|
|
| RPM Gauge | |
|
|
|
| Distance Meter | Digital | Digital | Digital | Digital |
| Multi Information Display | |
|
|
|
| 4x4 Indication Light | |
|
|
|
| Fuel Gauge | |
|
|
|
| Fuel Filter Indicator | |
|
|
|
| Headlamp Alarm | |
|
|
|
| Key Alarm | |
|
|
|
| Door Status Warning Lights | |
|
|
|
| Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
| Digital Clock | |
|
|
|
| Map Lamp (Front) | |
|
|
|
| Illumination System | |
|
|
|
| Key Switch Lamp | |
|
|
|
| Ash Tray | With lamp | With lamp | With lamp | With lamp |
| Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
| Audio | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
| USB / AUX Port | |
|
|
|
| Speakers | 6 | 6 | 4 | 4 |
| Antenna | Foldable | Foldable | Foldable | Foldable |
| Bluetooth | |
|
||
| Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
| Adjustable Steering Wheel | |
|
|
|
| Steering Wheel Material | 4 spoke leather, metallic, with audio controller and MID | 4 spoke leather, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane, metallic, with audio controller and MID |
| Cruise Control | |
|
|
|
| Hand Brake | At center console | At center console | At center console | At center console |
| Gear Knob | Leather with metallic | Leather | Urethane | Urethane |
| 4x4 Transmission Knob | |
|
|
|
| Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
| Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | With mirror and lid |
| Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
| Central Lock | |
|
|
|
| Remote Key | |
|
|
|
| Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
| 12 V. Outlets | |
|
|
|
| Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
| Door Panel | Mold/ Synthetic Finished | Mold/ Synthetic Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
| Door Panel Switch | Metallic | Metallic | Metallic | Metallic |
| Front Console | Metallic | Metallic | Metallic | Metallic |
| Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Seat Type | Split Type | Split Type | Split Type | Split Type |
| Seat's Material | Sand Beige Leathered and Synthetic Leathered | Sand Beige Leathered and Synthetic Leathered | Sand Beige Velvet | Sand Beige Velvet |
| Adjustable Front Seat | With electric adjust | With electric adjust | |
|
| Leanable Front Seat | (driver only) | (driver only) | |
|
| Height Adjustable Front Seat (Driver) | With electric adjust | With electric adjust | |
|
| Seat Pillow | (driver only) | (driver only) | |
|
| Passenger Seat | With electric adjust | With electric adjust | Foldable | |
| Passenger Seat Pillow | (driver only) | (driver only) | |
|
| Fuel Cover Lever | |
|
|
|
| Center Console Box | Foldable | Foldable | With cover lid | With cover lid |
| Upper Box | |
|
||
| Front Console Box | |
|
With key lock | With key lock |
| Glasses Console Box | With cover lid | With cover lid | At map lamp position | At map lamp position |
| Door Panel Storage | |
|
Front and rear with bottle holder | Front and rear with bottle holder |
| Glass Holder | With key lock | With key lock | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger |
| Footrest | |
|
|
|
| Safety | ||||
| ABS (Anti-Lock Braking System) | |
|
|
|
| Hi Mouth Stop Lamp | |
|
|
|
| Rear Window Defogger | |
|
|
|
| Back camera | |
|
|
|
| Crash Body Safety GOA | |
|
|
|
| Side Bar Protection | Front and rear | Front and rear | ||
| Windshield Glass | Laminated with tint | Laminated with tint | ||
| SRS Airbag | |
|
||
| Front Seatbelt | Front and rear | Front and rear | 3 ELR 2 positions | 3 ELR 2 positions |
| Rear Seatbelt | Laminated with tint | Laminated with tint | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
| Adjustable Seat Belt | Driver and front passenger | Driver and front passenger | 1 position | 1 position |
| Absorbing Door Structure | 3 ELR 2 positions | 3 ELR 2 positions | Driver and front passenger | Driver and front passenger |
| Collapsible Steering Column | |
|
|
|
| Collapsible Brake Pad | |
|
|
|
| Automatic Fuel Cut - Off Valve | |
|
|
|
2012 Toyota Hilux Vigo Champ Single Cab available now at Thailand top dealer Jim Autos Thailand
2012 Toyota Hilux Vigo Single Cab and Extra Cab
| Toyota Hilux Vigo Single Extra Cab Grades | Standard Cab 3.0 J-PS | Standard Cab 2.5 J-PS | Standard Cab 2.5 J | X-tra Cab 2.5 J-PS | 2.7J-PS VVT-i (Benzene) |
|---|---|---|---|---|---|
| Transmission: | 5 M/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
| Dimension and Weight | |||||
| Overall Length x Width x Height (mm.) | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,720 | 5,130 x 1,760 x 1,680 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 | 3085 |
| Tread Front x Rear (mm.) | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 |
| Min. Ground Clearance (mm.) | 181 | 181 | 181 | 181 | 181 |
| Deck inside L x W x H (mm.) | 2,315 x 1,520 x 450 | 2,315 x 1,520 x 450 | 2,315 x 1,520 x 450 | 1,805 x 1,515 x 450 | 2,315 x 1,520 x 450 |
| Interior Dimension - L x W x H (mm.) | 1,340 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 |
| Weight (kg.) | 1520 | 1450 | 1450 | 1530 | 1500 |
| Engine | |||||
| Model | 1KD-FTV (I/C) | 2KD-FTV | 2KD-FTV | 2KD-FTV | 2TR-FE |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC VVT-i |
| Displacement (cc.) | 2982 | 2494 | 2494 | 2494 | 2694 |
| Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 | 92.0 x 93.8 | 95.0 x 95.0 |
| Compression Ratio | 17.9 : 1 | 18.5 : 1 | 18.5 : 1 | 18.5 : 1 | 9.6 : 1 |
| Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 75 (102) / 3,600 | 75 (102) / 3,600 | 75 (102) / 3,600 | 118 (160) / 5,200 |
| Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 200 / 1,400-3,400 | 200 / 1,400-3,400 | 200 / 1,400-3,400 | 241 / 3,800 |
| Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | EFI |
| Fuel Capacity (liter) | 76 | 76 | 76 | 76 | 76 |
| Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 | EURO3 |
| Fuel Type | Diesel | Diesel | Diesel | Diesel | Benzene 91 or above |
| Transmission & Chassis | |||||
| Gear Ratio 1 | 4.313 | 3.928 | 3.928 | 3.928 | 3.83 |
| Gear Ratio 2 | 2.33 | 2.333 | 2.333 | 2.333 | 2.062 |
| Gear Ratio 3 | 1.436 | 1.451 | 1.451 | 1.451 | 1.436 |
| Gear Ratio 4 | 1 | 1 | 1 | 1 | 1 |
| Gear Ratio 5 | 0.838 | 0.798 | 0.798 | 0.798 | 0.838 |
| Reverse Gear Ratio | 4.22 | 4.743 | 4.743 | 4.743 | 4.22 |
| Center differential | 3.583 | 4.1 | 4.1 | 4.1 | 4.1 |
| Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV |
| Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Min. Turning Radius (m.) | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 |
| Power Steering Type | |
|
|
|
|
| Tires | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C |
| Wheel | Steel wheel with full cap (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) | Steel wheel (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) |
| Spare Tire | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C |
| Exterior | |||||
| Front Bumper | Color key | Color key | Color key | Color key | Color key |
| Front Grill | Black & Grey | Black & Grey | Black & Grey | Black & Grey | Black & Grey |
| Turbo Scoop | |
|
|
|
|
| Headlight | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen |
| Side Mirror | Black, manual adjust | Black, manual adjust | Black, manual adjust | Black, manual adjust | Black, manual adjust |
| Side Door Handle | Black Grip type | Black Grip type | Black Grip type | Black Grip type | Black Grip type |
| Mudguard | Front & back | Front & back | Front & back | Front & back | Front & back |
| Rain Wiper (Front) | 3 step adjustable | 3 step adjustable | 3 step adjustable | 3 step adjustable | 3 step adjustable |
| Interior | |||||
| RPM Gauge | |
|
|
|
|
| Distance Meter | Digital | Digital | Digital | Digital | Digital |
| Fuel Gauge | |
|
|
|
|
| Fuel Filter Indicator | |
|
|
|
|
| Headlamp Warning Light | |
|
|
|
|
| Key Alarm | |
|
|
|
|
| Door Status Warning Lights | |
|
|
|
|
| Seat Belt Indicator | Driver only | Driver only | Driver only | With walk-in system | Driver only |
| Digital Clock | |
|
|
|
|
| Illumination System | |
|
|
|
|
| Ash Tray | Without lamp | Without lamp | Without lamp | Without lamp | Without lamp |
| Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
| Audio | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
| USB / AUX Port | |
|
|
|
|
| Speakers | 2 | 2 | 2 | 2 | 2 |
| Antenna | Built-in at front column | Built-in at front column | Built-in at front column | Foldable | Built-in at front column |
| Air Conditioning System | knob controller | knob controller | knob controller | knob controller | knob controller |
| Steering Wheel | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable |
| Parking brake | Center console | Center console | Center console | Center console | Center console |
| Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
| Sun Visor (Passenger) | Without mirror | Without mirror | Without mirror | Without mirror | Without mirror |
| Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color | Console panel color |
| Door Panel | Mold | Mold | Mold | Mold | Mold |
| Front Console | Interior color | Interior color | Interior color | Interior color | Interior color |
| Door Panel Switch | Console panel color | Console panel color | Console panel color | Console panel color | Console panel color |
| Seat Type | Split Type 60 : 40 for 3 persons | Split Type 60 : 40 for 3 persons | Split Type 60 : 40 for 3 persons | Split Type | Split Type 60 : 40 for 3 persons |
| Seat's Material | Grey Vinyle | Grey Vinyle | Grey Vinyle | Grey Semi-Velvet | Grey Vinyle |
| Adjustable Front Seat | Driver only | Driver only | Driver only | With Walk-in system | Driver only |
| Leanable Front Seat | |
|
|
|
|
| Fuel Cover Lever | |
|
|
|
|
| Center Console Box | |
|
|
Without lid | |
| Upper Box | |
|
|
|
|
| Front Console Box | With key lock | With key lock | With key lock | With key lock | With key lock |
| Door Panel Storage | with bottle holder | with bottle holder | with bottle holder | with bottle holder at front & cab | with bottle holder |
| Glass Holder | 2 at front console | 2 at front console | 2 at front console | 2 at front console | 2 at front console |
| Footrest | |
|
|
|
|
| Safety Features | |||||
| Crash Body Safety GOA | |
|
|
|
|
| Side Bar Protection | |
|
|
|
|
| Windshield Glass | Laminated | Laminated | Laminated | Laminated | Laminated |
| Front Seatbelt | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions | 3 ELR 2 positions and 2 NR 1 position |
| Adjustable Seat Belt | |
|
|
Driver and passenger | |
| Absorbing Door Structure | |
|
|
|
|
| Collapsible Steering Column | |
|
|
|
|
| Collapsible Brake Pad | |
|
|
|
|
| Automatic Fuel Cut - Off Valve | |
|
|
|
|
2010 2009 Toyota Hilux Vigo Double Cab
2010 2009 Toyota Hilux Vigo Exterior Interior Facility Safety Anti-theft Systems 4x4 Toyota Hilux Vigo Double Cab and Prerunner Hi-rise 4x2 Toyota Hilux Vigo Double Cab
| Grades | 4x4 3.0G A/T | 4x4 3.0G | 4x4 3.0E | 4x4 2.5E | Prerunner 3.0E ABS | Prerunner 3.0E |
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
| Price: | 943,000 baht | 898,000 baht | 794,000 baht | 764,000 baht | 772,000 baht | 743,000 baht |
| Exterior Features | ||||||
| Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
| Front bumper | Color key | Color key | Color key | Color key | Color key | Color key |
| Head light | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
| Front Sport light | - | - | - | |||
| Side step | ||||||
| Side door handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
| Side mirror | Chromed, electrical adjust | ChromiumChromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
| Hi mouth stop lamp | ||||||
| Antenna | Front pillar | Front pillar | Front pillar | Front pillar | Front pillar | Front pillar |
| Front windshield | Laminated | Laminated | Laminated | Laminated | Laminated | Laminated |
| Interior Features | ||||||
| Color | Two tone | Two tone | Ivory | Two tone | Ivory | |
| Decoration | Sand Beige | Sand Beige | Sand Beige | Sand Beige | Sand Beige | Sand Beige |
| Combination meter | Optitron | Analog + Digital trip | Analog + Digital trip | Analog + Digital trip | Analog + Digital trip | Analog + Digital trip |
| Seat's material | Leathered | Leathered | Velvet | Velvet | Velvet | Velvet |
| Steering wheel's material | Urethane | Urethane | Urethane | Urethane | Urethane | Urethane |
| Sun visor | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip |
| Rear mirror | Day & Night | Day & Night | Day & Night | Day & Night | Day & Night | Day & Night |
| Center console box | ||||||
| Front seat | Electrical adjust | Electrical adjust | Manual adjust | Manual adjust | Manual adjust | Manual adjust |
| Rear seat | Foldable with pillow | Foldable with pillow | Foldable with pillow | Foldable with pillow | Foldable with pillow | Foldable with pillow |
| Front seat arm rest | ||||||
| Parking brake | Center console | Center console | Center console | Center console | Center console | Center console |
| Safety Features | ||||||
| GOA body | ||||||
| Side bar protection | ||||||
| ABS | - | - | - | |||
| Safety belt | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point |
| SRS Airbag | Driver and front passenger | Driver and front passenger | - | - | - | - |
| Power Features | ||||||
| Air conditioner | Manual with control knobs | Manual with control knobs | Manual with control knobs | Manual with control knobs | Manual with control knobs | Manual with control knobs |
| Audio | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA |
| Speaker | 6 | 6 | 4 | 4 | 6 | 6 |
| Power door lock | Central Lock | Central Lock | Central Lock | Central Lock | Central Lock | Central Lock |
| Power windows | with Jam-Protection | with Jam-Protection | with Jam-Protection | with Jam-Protection | with Jam-Protection | with Jam-Protection |
| Wireless key | ||||||
| Steering column adjusting | Tilt | Tilt | Tilt | Tilt | Tilt | Tilt |
| Viper control system | Timer | Timer | Timer | Timer | Timer | Timer |
| Cruise control | Yes | - | - | - | - | - |
| Anti-Theft System | ||||||
| Immobilizer system | - | - | - | - | ||
| Thief Deterrent System | TDS | TDS | TDS | TDS | TDS | TDS |
2010 2009 Toyota Hilux Vigo Exterior Interior Facility Safety Anti-theft Systems 4x2 Toyota Hilux Vigo Double Cab
| Grades | 4x2 3.0G A/T | 4x2 3.0G | 4x2 2.5G | 4x2 2.5E | 4x2 2.5J-PS |
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
| Price: | 799,000 baht | 759,000 baht | 709,000 baht | 669,000 baht | 594,000 baht |
| Exterior Features | |||||
| Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
| Front bumper | Color key | Color key | Color key | Color key | Color key |
| Head light | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
| Front Sport light | - | - | |||
| Side step | - | - | - | - | - |
| Side door handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
| Side mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Black, manual adjust |
| Hi mouth stop lamp | |||||
| Antenna | Front pillar | Front pillar | Front pillar | Front pillar | Front pillar |
| Front windshield | Laminated | Laminated | Laminated | Laminated | |
| Interior Features | |||||
| Color | |||||
| Decoration | Sand Beige | Sand Beige | Sand Beige | Sand Beige | Sand Beige |
| Combination meter | Optitron | Optitron | Optitron | Analog + Digital trip | Analog + Digital trip |
| Seat's material | Velvet | Velvet | Velvet | Velvet | Semi Velvet |
| Steering wheel's material | Urethane | Urethane | Urethane | Urethane | Urethane |
| Sun visor | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip | with mirror & name card slip | Name card slip (driver |
| Rear mirror | Day & Night | Day & Night | Day & Night | Day & Night | Day & Night |
| Center console box | |||||
| Front seat | Manual adjust | Manual adjust | Manual adjust | Manual adjust | Manual adjust |
| Rear seat | Foldable with pillow | Foldable with pillow | Foldable with pillow | Foldable with pillow | Foldable with pillow |
| Front seat arm rest | |||||
| Parking brake | Center console | Center console | Center console | Center console | Center console |
| Safety Features | |||||
| GOA body | |||||
| Side bar protection | |||||
| ABS | - | - | |||
| Safety belt | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point | Front 3 ELR 2 points + Rear 3 ELR 2 points and 2 NR 1 point |
| SRS Airbag | Driver and front passenger | Driver and front passenger | Driver and front passenger | - | - |
| Power Features | |||||
| Air conditioner | Manual with control knobs | Manual with control knobs | Manual with control knobs | Manual with control knobs | Manual with control knobs |
| Audio | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA | 2 din 1CD MP3/WMA |
| Speaker | 6 | 6 | 6 | 4 | 2 |
| Power door lock | Central Lock | Central Lock | Central Lock | Central Lock | - |
| Power windows | with Jam-Protection | with Jam-Protection | with Jam-Protection | with Jam-Protection | - |
| Wireless key | - | ||||
| Steering column adjusting | Tilt | Tilt | Tilt | Tilt | Tilt |
| Viper control system | Timer | Timer | Timer | Timer | Timer |
| Cruise control | - | - | - | - | - |
| Anti-Theft System | |||||
| Immobilizer system | - | - | |||
| Thief Deterrent System | TDS | TDS | TDS | TDS | - |
2010 2009 Toyota Hilux Vigo Exterior Interior Facility Safety Anti-theft Systems 4x4 Toyota Hilux Vigo Double Cab and Prerunner Hi-rise 4x2 Toyota Hilux Vigo Double Cab
| Grade | 4x4 3.0G A/T | 4x4 3.0G | 4x4 3.0E | 4x4 2.5E | Prerunner 3.0E ABS | Prerunner 3.0E |
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
| Price: | 943,000 baht | 898,000 baht | 794,000 baht | 764,000 baht | 772,000 baht | 743,000 baht |
| Dimension | ||||||
| Exterior Dimension - L x W x H (mm.) | 5,130x1,835x1,820 | 5,130x1,835x1,820 | 5,130x1,835x1,820 | 5,130x1,835x1,820 | 5,130x1,835x1,820 | 5,130x1,835x1,820 |
| Interior Dimension - L x W x H (mn.) | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 |
| Deck inside L x W x H (mm.) | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 | 3085 | 3085 |
| Thread Front/Rear (mm.) | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 | 1,540/1,540 |
| Ground clearance (mm.) | 227 | 227 | 227 | 227 | 227 | 227 |
| Curb Weight (kg.) | 1870 | 1845 | 1845 | 1825 | 1730 | 1730 |
| Fuel tank capacity (L.) | 76 | 76 | 76 | 76 | 76 | 76 |
| Engine | ||||||
| Model | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 1KD-FTV(I/C) | 1KD-FTV(I/C) |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler |
| Displacement (cc.) | 2982 | 2982 | 2982 | 2494 | 2982 | 2982 |
| Bore x Stroke (mm.) | 96.0x103.0 | 96.0x103.0 | 96.0x103.0 | 92.0x93.8 | 96.0x103.0 | 96.0x103.0 |
| Compression ratio | 17.9:1 | 17.9:1 | 17.9:1 | 18.5:1 | 17.9:1 | 17.9:1 |
| Fuel system | Common-rail | Common-rail | Common-rail | Common-rail | Common-rail | Common-rail |
| Max output (ps /rpm) | 163/3,400 | 163/3,400 | 163/3,400 | 120/3,600 | 163/3,400 | 163/3,400 |
| Max output (kw/rpm) | 120/3,400 | 120/3,400 | 120/3,400 | 88/3,600 | 120/3,400 | 120/3,400 |
| Max torque (n-m/rpm) | 343/1,400-3,200 | 343/1,400-3,200 | 343/1,400-3,200 | 325/2,000 | 343/1,400-3,200 | 343/1,400-3,200 |
| Brakes & Suspension | ||||||
| Front suspension | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Rigid type and Leaf spring | Rigid type and Leaf spring | Rigid type and Leaf spring with limited slip | Rigid type and Leaf spring with limited slip | Rigid type and Leaf spring | Rigid type and Leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LST | Drum LST | Drum LST with super LSPV | Drum LST with super LSPV | Drum LST with super LSPV | Drum LST with super LSPV |
| Wheel | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches |
| Tyre size | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 | 265/65 R17 |
| Drive Train | 4wd Part time with ADD & LSD | 4wd Part time with ADD & LSD | 4wd Part time with ADD & LSD | 4wd Part time with ADD & LSD | Rear wheel drive | Rear wheel drive |
| Steering system | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power |
| Steering type | Front wheel | Front wheel | Front wheel | Front wheel | Front wheel | Front wheel |
2010 2009 Toyota Hilux Vigo Exterior Interior Facility Safety Anti-theft Systems 4x2 Toyota Hilux Vigo Double Cab
| Grade | 4x2 3.0G A/T | 4x2 3.0G | 4x2 2.5G | 4x2 2.5E | 4x2 2.5J-PS |
| Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
| Price: | 799,000 baht | 759,000 baht | 709,000 baht | 669,000 baht | 594,000 baht |
| Dimension | |||||
| Exterior Dimension - L x W x H (mm.) | 5,130x1,760x1,695 | 5,130x1,760x1,695 | 5,130x1,760x1,695 | 5,130x1,760x1,695 | 5,130x1,760x1,695 |
| Interior Dimension - L x W x H (mn.) | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 | 2,130x1,475x1,195 |
| Deck inside L x W x H (mm.) | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 | 1,520x1,515x450 |
| Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 | 3085 |
| Thread Front/Rear (mm.) | 1,510/1,510 | 1,510/1,510 | 1,510/1,510 | 1,510/1,510 | 1,510/1,510 |
| Ground clearance (mm.) | 181 | 181 | 181 | 181 | 181 |
| Curb Weight (kg.) | 1680 | 1665 | 1615 | 1615 | 1615 |
| Fuel tank capacity (L.) | 76 | 76 | 76 | 76 | 76 |
| Engine | |||||
| Model | 2KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV |
| Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo Intercooler | 4 cyl 16 valve DOHC turbo Intercooler | 4 cyl 16 valve DOHC VN turbo |
| Displacement (cc.) | 2982 | 2982 | 2494 | 2494 | 2494 |
| Bore x Stroke (mm.) | 96.0x103.0 | 96.0x103.0 | 92.0x93.8 | 92.0x93.8 | 92.0x93.8 |
| Compression ratio | 17.9:1 | 17.9:1 | 18.5:1 | 18.5:1 | 18.5:1 |
| Fuel system | Common-rail | Common-rail | Common-rail | Common-rail | Common-rail |
| Max output (ps /rpm) | 163/3,400 | 163/3,400 | 120/3,600 | 120/3,600 | 120/3,600 |
| Max output (kw/rpm) | 120/3,400 | 120/3,400 | 88/3,600 | 88/3,600 | 88/3,600 |
| Max torque (n-m/rpm) | 343/1,400-3,200 | 343/1,400-3,200 | 325/2,000 | 325/2,000 | 325/2,000 |
| Brakes & Suspension | |||||
| Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
| Rear suspension | Rigid type and Leaf spring | Rigid type and Leaf spring | Rigid type and Leaf spring | Rigid type and Leaf spring | Rigid type and Leaf spring |
| Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake | Drum LST with super LSPV | Drum LST with super LSPV | Drum LST with super LSPV | Drum LST with super LSPV | Drum LST with super LSPV |
| Wheel | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Steel wheel with full cap (6JJx15 in size) |
| Tyre size | 215/65 R16C | 215/65 R16C | 215/65 R16C | 215/65 R16C | 205/70 R15C |
| Drive Train | Rear wheel drive | Rear wheel drive | Rear wheel drive | Rear wheel drive | Rear wheel drive |
| Steering system | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power | Rack & Pinion with Power |
| Steering type | Front wheel | Front wheel | Front wheel | Front wheel | Front wheel |
Toyota Vigo Double Cab 2004, 2005 2006 2007 2008 Quality Pre-owned used Toyota Hilux Vigo on sale at Jim Autos Thailand
THis page only has info on Toyota Vigo from 2004 to 2008. For info on 2009 Double Cab Toyota Hilux Vigo please click here.
Email us now at [email protected] for your very own Toyota Vigo or Toyota Hilux Tiger.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Double Cab Vigo G and E
|
Grade |
3.0 G AUTO
|
3.0 G
|
3.0 E
|
2.5 E
|
| Model Code |
KUN26R-PRPSYT ( AX )
|
KUN26R-PRMSYT ( AW )
|
KUN26R-PRMSYT ( AV )
|
KUN25R-PRMSHT ( AS )
|
| Size and Weight | ||||
| Outside dimension mm. |
5130 x 1835 x 1820 ( L x W x H )
|
|||
| Wheel length mm. |
3085
|
|||
| Wheel width mm. |
1540 x 1540 ( Front / Back wheel )
|
|||
| Ground clearance mm. |
227
|
|||
| Tray interior mm. |
1515 x 1520 x 450 ( W x L x H )
|
|||
| Interior mm. |
1475 x 2130 x 1195 ( W x L x H )
|
|||
| Weight (approximately) kg. |
1870
|
1845
|
1825
|
|
| Engine | ||||
|
Engine model
|
1KD FTV
|
2KD-FTV ( I/C ) | ||
|
Engine type
|
4 Cylinder DOHC 16 valve variable nozzle turbo & intercooler
|
4 Cylinder DOHC 16 valve
variable nozzle turbo & intercooler |
||
|
Displacement cc.
|
2982
|
2494
|
||
|
Bore x Stroke mm.
|
97.0 x 103.0
|
92.0 x 93.8
|
||
|
Compression ratio
|
17.9 : 1
|
18.5 : 1
|
||
|
Max output (SAE net) kw(EEC net)/rpm
|
120 ( 163 ) / 3400
|
88 ( 120 ) / 3600
|
||
|
Max torque (SAE net ) (N-m)/rpm
|
343 / 1400 - 3200
|
320 / 2000
|
||
| Fuel providing system |
Direct Injection Commonrail type
|
|||
| Fuel tank capacity litre |
76
|
|||
| Emission Standard |
Euro 3
|
|||
| Chassis | ||||
| Driving system |
4 speed automatic
|
5 speed manual
|
||
| Gear ratio : 1 |
2.804
|
4.313
|
||
| : 2 |
1.531
|
2.330
|
||
| : 3 |
1
|
1.436
|
||
| : 4 |
0.705
|
1.000
|
||
| : 5 |
|
0.838
|
||
| Reverse |
2.393
|
4.220
|
||
| Final gear ratio Per 1 |
3.909
|
3.583
|
3.909
|
|
|
Suspension Front |
Independent-wishbone, torsion bar with stabilizer and automatic
cutout ( A.D.D. )
|
|||
| Back |
Rigid-elliptic leaf springs with limited slip
|
|||
| Brake Front |
Ventilated Discs
|
|||
| Back |
Drum with brake oil valve SUPER LSPV with LTS
|
|||
| Steering |
Power assisted Rack and Pinion
|
|||
| Min. turning radius m. |
6.2
|
|||
| Tyre |
265 / 70R16
|
|||
|
Wheel |
Alloy wheel size 7JJ x 16
|
|||
|
|
||||
|
General equipment
|
||||
| Exterior | ||||
| Bumper bar | Body Coloured | |||
| Front grill | Body Coloured with Chrome | |||
| Front light | Halogen multi reflector | |||
| Door mirrors | Chrome Electronically Adjustable | |||
| Mud flaps | Only 2 wheels at back side | |||
| Door handles ( Grip Type ) | Chrome | |||
| Wiper | Time Setting | |||
| Interior | ||||
| Instrument panel : | ||||
| Tachometer | ||||
| Kilometer |
Digital
|
|||
| Warning signal : | ||||
|
Fuel level
|
||||
|
Oil filter light
|
||||
|
Headlight- turn off
warning sound |
||||
|
Key warning sound
|
||||
|
Door-closed warning light
|
||||
|
Seat-belt warning light
|
On driver side
|
|||
| Interior lights : | ||||
|
Map light
|
|
|||
|
Cabin light
|
|
|||
|
Key light
|
||||
|
Ashtray |
With Light |
|||
| Rear mirror | Reduction of light -reflecting | |||
| Audio : | ||||
|
Radio-cassette
|
||||
|
Speakers
|
4
|
|||
|
Antenna
|
Front position
|
|||
| Audio : | ||||
|
Radio-cassette
|
||||
|
Speakers
|
4
|
|||
|
Antenna
|
Front position
|
|||
| Steering wheel Adjustable |
|
|||
|
Type
|
Urithene 4 spokes
|
Urithene 3 spokes
|
||
| Hand brake |
at center console
|
|||
|
Transmission 4 x 4 |
||||
| Sun visor : | ||||
|
Driver side
|
With name card keeper
|
|||
|
Passenger side
|
With small mirror
|
|||
| Power windows |
|
|||
| Central lock | ||||
| Key remote |
|
 |
|
|
| Alarm system and key immobilzer |
|
|
|
|
| Power socket |
1 Socket 12 Voltages
|
|||
| Interior handles |
3 positions at front and 2 positions at back
|
|||
| Door console : | ||||
|
Type
|
Standard
|
|||
|
Material
|
Velvet
|
|||
|
Arm rest
|
Front and back
|
|||
|
Seats :
|
|
|||
|
Type
|
Separated type
|
|||
|
Material
|
Velvet creamy colour
|
|||
|
Front seats :
|
Adjustable
|
|||
|
Backward adjusting
|
||||
|
Height level adjusting
|
||||
|
Pillow
|
||||
| Back seats : Type |
Foldable
|
|||
|
Pillow
|
|
|||
| Fuel cap release | ||||
| Glove box : | ||||
|
Center console
|
With cover
|
|||
|
Top console
|
||||
|
Bottom console
|
With key
|
|||
|
Sun glass box
|
Same position of light map
|
|||
|
Door console
|
4 doors with bottle holder
|
|||
| Cup holder : |
2 positions at front console
1 position at center console |
|||
|
With key
|
||||
|
With bottle holder
|
||||
| Cup holder : |
2 positions at front console
|
2 positions at front console
|
||
|
2 positions at center console
|
1 position at center console
|
|||
|
2 positions at back
|
2 positions at back
|
|||
| Foot rest | ||||
| Active Safety | ||||
| ABS |
|
|
||
| Third brake light |
|
|||
| Fog lights |
|
|
||
| Heated rear windscreen |
|
|||
| Interior door locking |
2 back doors
|
|||
| Passive Safety | ||||
| GOA Body | ||||
| Side racks |
Front and back
|
|||
| Windscreen |
Safety glass
|
|||
| Air bag |
Only driver side
|
|
||
| Seat belts | ||||
|
Front seats
|
ELR 3 points 2 positions
|
|||
|
Rear seats
|
ELR 3 points 2 positions and NR 2 points 1 position
|
|||
|
Adjustable
|
Front passenger seat and drive seat
|
|||
| Collision protection body | ||||
| Collapsable steering wheel | ||||
| Side impact protection | ||||
| Automatic oil valve cutting | ||||
| Extra Equipments | ||||
|
Air-con |
With control switch rotate-type
|
|||
| Audio 1 CD with MP3 |
With 6 speakers
|
|
|
|
| Rear bumper |
Chrome
|
|||
| Wheel arch |
Body coloured
|
|||
| Side step | ||||
| Fog lights |
|
|
|
|
Vigo Double Cab Specifications G 3.0
| Model grade | G 3.0 A/T | G 3.0 M/T |
| ENGINE | ||
| Model | 1KD-FTV | |
| Type | 3.0 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo w/ Intercooler | |
| Displacement cc | 2,982 | |
| Maximum Output Hp/rpm | 163 / 3,400 | |
| Maximum Nm / rpm | 343 / 1,400 - 3,200 | |
| Transmission | 4-Speed Automatic, Gate Type w/ ECT | 5-Speed Manual |
| Fuel System | Direct Injection Common Rail (D-4D) | |
| CHASSIS | ||
| Suspension front front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring | |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum | |
| Steering System | Rack and Pinion with Power Assist | |
| Tires / Wheels | 255 / 70 R15 7JJ x 15" Alloy | |
| Drivetrain | 4 x 4 Auto Disconnect Differential (A.D.D.) | |
| DIMENSION AND WEIGHT | ||
| Overall length x width x height | 5,255 x 1,835 x 1,810 | |
| Wheelbase | 3,085 | |
| Thread: front / rear | 1,540 / 1,540 | |
| Ground Clearance | 212 | |
| Gross Vehicle Weight | 2,790 | |
| Curb Weight | 1,880 | 1,860 |
| Minimum Turning Radius | 6.5 | |
| Fuel Tank Capacity | 76 | |
| Seating Capacity | 5 | |
| EXTERIOR | ||
| Headlamps | Multi-Reflector Halogen | |
| Front Foglamps | Multi-Reflector Halogen | |
| Bumper front | Color Keyed | |
| Bumper rear | Chrome | |
| Front Grille | Chrome | Color Keyed |
| Front Windshield Wiper | Intermittent Time Adjuster + Mist | |
| Overfenders | Color Keyed | |
| Side Turning Lamp Markers | With | |
| Outside Rear View Mirror | Chrome | |
| Door Outside Handle | Chrome | |
| Side Step | With | |
| INTERIOR | ||
| Seats front | Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment | |
| Seats rear | Foldable with Headrest and Tool Box Compartment | |
| Seat Materials | Full Moquette | |
| Speedometer | Analog | |
| Tachometer | With | |
| Odometer | Digital | |
| Steering Wheel and Column | 4 - Spoke / Tilt-Adjustable | |
| Map Lamp | With + Header Box | |
| Clock | Digital | |
| Shift Knob / Shift Boot | Urethane | |
| Console Box | Dual with Lid | |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) | |
| Cupholders / Bottle Holders rear | Console Box (2 pcs) + Door Trim (2 pcs) | |
| Sunvisor | Driver (with ticket holder) + passenger (with Vanity Mirror) | |
| Door Trim | Moulded, Fabric | |
| Door Packets | Front and Rear | |
| Inner Rear View Mirror | Day and Night | |
| FUNCTION | ||
| Power Features | Window, Doorlock, Outside Rear View Mirror | |
| Cigarette Lighter | With Illumination | |
| Accessory Power Outlet | Front (12v) | |
| Airconditioning System | Single, Manual | |
| Key Remind | With | |
| Antenna | Pillar Mounted | |
| Vehicle Security System | With Keyless Entry | |
| SAFETY | ||
| SRS Airbag | Driver Side | |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 | |
| Child Proof Lock | With | |
| High Mount Stop Lamp | With (Tail Gate Integrated), LED Type | |
| Side Door Impact Beam | With | |
Vigo 2WD Double Cab
|
Model : |
Hilux Vigo Double Cab 1KD 3.0 G Auto |
Hilux Vigo Double Cab 1KD 3.0 G |
Hilux Vigo Double Cab 2KD 2.5 J |
Hilux Vigo Double Cab 2KD 2.5 J-PS |
|
Engine Type : |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo |
2KD-FTV Inline 4 DOHC VN Turbo |
|
Engine Capacity : |
2982 |
2982 |
2494 |
2494 |
|
Style : |
Double Cab |
Double Cab |
Double Cab |
Double Cab |
|
Driving System : |
2WD |
2WD |
2WD |
2WD |
|
Transmission : |
Automatic 4 speed |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
Vigo 4WD Double Cab
|
Model : |
Hilux Vigo 4WD Double Cab 1KD 3.0 G Auto |
Hilux Vigo 4WD Double Cab 1KD 3.0 G Manual |
Hilux Vigo 4WD Double Cab 1KD 2.5 E Manual |
Hilux Vigo 4WD Double Cab 2KD 2.5 E Manual |
|
Engine Type : |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo Intercooler |
|
Engine Capacity : |
2982 |
2982 |
2982 |
2494 |
|
Style : |
Double Cab |
Double Cab |
Double Cab |
Double Cab |
|
Driving System : |
4WD |
4WD |
4WD |
4WD |
|
Transmission : |
Automatic 4 speed |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
Grade E 2.5
| Model grade | HILUX E (KUN15L-PRMSYM)K}K} |
| ENGINE | |
| Model | 2KD-FTV |
| Type | 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo |
| Displacement cc | 2,494 |
| Maximum Output Hp/rpm | 102 / 3,600 |
| Maximum Nm / rpm | 200 / 1,400 - 3,400 |
| Transmission | 5-speed M/T |
| Fuel System | Direct Injection Common Rail (D-4D) |
| CHASSIS | |
| Suspension front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum |
| Steering System | Rack and Pinion with Power Assist |
| Tires / Wheels | 205/70 R15 7JJ x 15" Alloy |
| Drivetrain | 4 x 2 |
| DIMENSION AND WEIGHT | |
| Overall lenght x width x height | 5,255 x 1,760 x 1,695 |
| Wheelbase | 3,085 |
| Thread: front / rear | 1,510 / 1,510 |
| Ground Clearance | 181 |
| Gross Vehicle Weight | 2,650 |
| Curb Weight | 1,655 |
| Minimum Turning Radius | 6.3 |
| Fuel Tank Capacity | 76 |
| Seating Capacity | 5 |
| EXTERIOR | |
| Headlamps | Multi-Reflector Halogen |
| Front Foglamps | Without |
| Bumper front | Color Keyed |
| Bumper rear | Crome |
| Front Grille | Color Keyed |
| Front Windshield Wiper | Intermittent Time Adjust + Mist |
| Overfenders | Without |
| Side Turning Lamp Markers | With |
| Outside Rear View Mirror | Chrome |
| Door Outside Handle | Chrome |
| Side Step | Without |
| INTERIOR | |
| Seats front | Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment |
| Seats rear | Foldable with Headrest and Tool Box Compartment |
| Seat Materials | Full Moqutte |
| Speedometer | Analog |
| Tachometer | With |
| Odometer | Digital |
| Steering Wheel and Column | 3 - Spoke / Tilt-Adjustable |
| Map Lamp | Without |
| Clock | Digital |
| Shift Knob / Shift Boot | Urethane |
| Console Box | Dual with LID |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) |
| Cupholders / Bottle Holders rear | Door Trim (2 pcs) |
| Sunvisor | Driver (with ticket holder) + Passenger (with Vanity Mirror) |
| Door Trim | Moulded, Fabric |
| Door Packets | Front and Rear |
| Inner Rear View Mirror | Day and Night |
| FUNCTION | |
| Power Features | Window, Doorlock, Outside rear view mirror |
| Cigarette Lighter | With illumination |
| Accessory Power Outlet | Front (12v) |
| Airconditioning System | Single, Manual |
| Key Remind | Without |
| Antenna | Pillar Mounted |
| Vehicle Security System | With Keyless Entry |
| SAFETY | |
| SRS Airbag | Driver |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 |
| Child Proof Lock | With |
| High Mount Stop Lamp | With (Tail Gated Integrated) |
| Side Door Impact Beam | With |
Hilux J 2500 cc
| Model grade | HILUX J (KUN15L-PRMDYM) |
| ENGINE | |
| Model | 2KD-FTV |
| Type | 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo |
| Displacement cc | 2,494 |
| Maximum Output Hp/rpm | 102 / 3,600 |
| Maximum Nm / rpm | 200 / 1,400 - 3,400 |
| Transmission | 5-speed M/T |
| Fuel System | Direct Injection Common Rail (D-4D) |
| CHASSIS | |
| Suspension front front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum |
| Steering System | Rack and Pinion with Power Assist |
| Tires / Wheels | 195 R14C Steel |
| Drivetrain | 4 x 2 |
| DIMENSION AND WEIGHT | |
| Overall lenght x width x height | 5,130 x 1,760 x 1,695 |
| Wheelbase | 3,085 |
| Thread: front / rear | 1,510 / 1,510 |
| Ground Clearance | 181 |
| Gross Vehicle Weight | 2,650 |
| Curb Weight | 1,645 |
| Minimum Turning Radius | 6.3 |
| Fuel Tank Capacity | 76 |
| Seating Capacity | 5 |
| EXTERIOR | |
| Headlamps | Multi-Reflector Halogen |
| Front Foglamps | Without |
| Bumper front | Black |
| Bumper rear | Without |
| Front Grille | Black |
| Front Windshield Wiper | Mist Only |
| Overfenders | Without |
| Side Turning Lamp Markers | With |
| Outside Rear View Mirror | Black |
| Door Outside Handle | Black |
| Side Step | Without |
| INTERIOR | |
| Seats front | Sliding / Reclining with Headrest (2 pcs) |
| Seats rear | Foldable with Headrest and Tool Box Compartment |
| Seat Materials | Fabric |
| Speedometer | Analog |
| Tachometer | With |
| Odometer | Digital |
| Steering Wheel and Column | 3 - Spoke / Tilt-Adjustable |
| Map Lamp | Without |
| Clock | Digital |
| Shift Knob / Shift Boot | Urethane |
| Console Box | Single |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) |
| Cupholders / Bottlle Holders rear | Door Trim (2 pcs) |
| Sunvisor | Driver (with ticket holder) |
| Door Trim | Moulded, Fabric |
| Door Packets | Front and Rear |
| Inner Rear View Mirror | Day and Night |
| FUNCTION | |
| Power Features | Without |
| Cigarette Lighter | With |
| Accessory Power Outlet | Without |
| Airconditioning System | Single, Manual |
| Key Remind | Without |
| Antenna | Pillar Mounted |
| Vehicle Security System | Without |
| SAFETY | |
| SRS Airbag | Driver |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 |
| Child Proof Lock | With |
| High Mount Stop Lamp | Without |
| Side Door Impact Beam | With |
 |
 |
 |
| Return to our page on Toyota Hilux Vigo | Return to Index Page | Email us now at [email protected] |
It
is our great pleasure to welcome you to Jim Autos. According to Statcounter,
you are the
-th visitor to our site.
Our Australia, United Kingdom and Dubai Divisions Jim Autos Australia, UK and Dubai offers all kinds of new and used vehicles from Australia, United Kingdom, Dubai and United States ranging from sedans, small cars, family cars, estate cars station wagons, cabriolets convertibles, executive cars, 4x4 pickups, 4x4 SUVs, coupes, Multi-purpose vehicles (MPVs), vans, trucks to construction and farm machinery from Toyota, Honda, Nissan, Mitsubishi, Lexus, Mazda, Isuzu, Infiniti, Audi, Mercedes Benz, VolksWagen, BMW, Porsche, Alfa Romeo, Fiat, Ferrari, Lamborghini, Maserati, Iveco Trucks, Land Rover, Jaguar, Mini, Aston Martin, Bentley, Lotus, Vauxhall, Rolls Royce, Citroen, Renault Cars, Bugatti, Peugeot, Renault Trucks, Chrysler, Jeep, Ford, Chevrolet, Saab, Volvo, Scania Trucks, Volvo Trucks, DAF Trucks, Hyundai, Ssang Yong, Kia, Seat and Skoda
