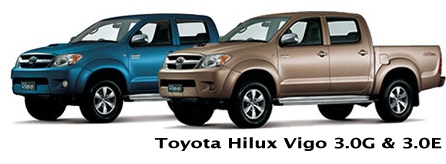

Difference between Vigo G & E

The major difference between "G" and "E" is that the top of the line "G" comes with airbag, ABS, spotlight, remote key, alarm & immobiliser, six-disc in dash CD autochanger and CD Player, but "E" has neither of these. E is identical to G in all other respects.

Please note that 2500 cc only has an E version. 2700cc Vigo only comes with a petrol engine. There is also a J version (see below) but there is not much demand for this vehicle.

Vigo G, E and J Features

4x4 Double Cab

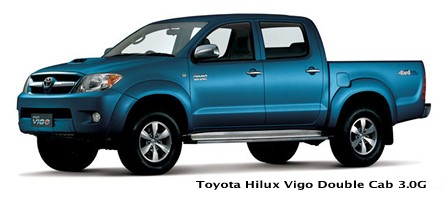

Vigo Grade "G"


Engine (Diesel):

3.0 cc
(Turbo Inter-cooled)

3.0 cc
(Turbo Inter-cooled)

Transmission:

Manual 5-speed

Auto

Safety:

ABS Brakes, Driver side Airbag, Side Impact Beams, GOA body (Global Outstanding Assessment), Collapsible steering column, Inertia fuel cutoff.

Wheel Types:

16" Alloy

Features

Air conditioner, Power windows, Power steering, AM/FM CD/MP-3 Player, On-board computer, Kmh Speedos, cloth seats, Front & rear cup holders, Front spot lights, Remote central locking, Alarm & Immobiliser








4x4 Double Cab


Vigo Grade E


Engine (Diesel):

2.5 cc
(Turbo Inter-cooled)

3.0 cc
(Turbo Inter-cooled)

Transmission:

Manual 5-speed

Safety:

Side Impact Beams, GOA body (Global Outstanding Assessment), Collapsible steering column, Inertia fuel cutoff.

Wheel Types:

15" Alloy

Features

Air conditioner, Power windows, Power steering, AM/FM Stereo, On-board computer, Kmh Speedos (Mph optional), Cloth seats, Front & rear cup holders, Central locking



4x4 Double Cab


Vigo Grade J


Engine (Diesel):

2.5 cc
(
NOT Turbo Inter-cooled)

3.0 cc
(
NOT Turbo Inter-cooled)

Transmission:


Manual 5-speed


Safety:


Side Impact Beams, GOA body (Global Outstanding Assessment), Collapsible steering column, Inertia fuel cutoff.


Wheel Types:


15" Steel Wheels (NOT Alloy)


Features


Air conditioner, Power windows, Power steering, AM/FM Stereo, On-board computer, Kmh Speedos, Cloth seats, Front & rear cup holders, Central locking



























Hilux Vigo G and E Specifications

Model
G
G
E
E
Engine
Model Code
KUN26R-PRPSYT
KUN26R-PRPSYT
KUN25R-PRMSHT

Engine Model

1KD-FTV Turbo Intercooler

2KD-FTV Turbo Intercooler

Configuration

Inline 4 DOHC

Inline 4 DOHC
Capacity (cc)

2,982

2,494
Cylinder bore x Stoke (mm)

97.0 x 103.0

92.0 x 93.8
Compression Ratio :1

17.9

18.5
Maximum Power-EEC Net (Kw/rpm)

120/4,000

88/2,000
Maximum Torque-EEC Net (Nm/rpm)

343/1,400-3,400

320/2,000
Maximum Speed km/h

175

155
Drivetrain System
Manual Transmission

Automatic Transmission

Clutch

Dry-disc clutch

Torque Converter with Lock-up System
Transmission

Mechanical Transmission

4-speed Automatic with Overdrive
Gear Ratios (:1)
1 st
4.313
2.804
2 nd
2.330
1.531
3 rd
1.436
1.000
4 th
1.000
0.705
5 th
0.838
-
Reverse
4.220
2.393
Transfer (Low/ High)
1.900/1.000
-
Differential

3.583

3.909
Steering System



Type

Recirculating ball and nut with power assisted

Ratio (:1)

46.68

Turns, lock-to-lock (m.)

6.2

Brake System



Front

Ventilated disc brake

Rear

Drum brake, leading/trailing type with super LSPV

Suspension System



Front
Independent-wishbone, torsion bar with stabilizer
Rear

Semi-eclipse Steel Leaf spring and gas-pressurized shock absorbers

Dimension / Capacity



Length (mm)

5,130

Width (mm)

1,835

Height (mm)

1,820

Wheelbase (mm)

3,085

Front Tread/ Rear Tread (mm)

1,540/1,540

Minimum Ground Clearance (mm)

227

Kerb Weight (Kg)

1,850

Gross Vehicle Weight (Kg)

2,600

Bed Interior Length (mm)

1,520

Bed Interior Width (mm)

1,515

Bed Interior Height (mm)

450

Cab Interior Length (mm)

2,130

Cab Interior Width (mm)

1,475

Cab Interior Height (mm)

1,195

Fuel Tank (Ltr)

76
