Jim Autos is Thailand's largest, Singapore's, United Kingdom UK's and Dubai's largest Toyota Vigo Hilux Pickup Truck Dealer and Toyota Hilux Vigo Exporter
Toyota Hilux Vigo remains our best selling 4x4 pickup eleven year running. 2015 Toyota Hilux Vigo Major Change model is around the corner. Advent of 2012 2013 and 2014 Toyota Hilux Vigo had infused new life into the Vigo Hilux Toyota brand. We were first Thai exporter to ship Toyota Vigo out of Thailand in October 2004 and we continue to dominate Vigo export which is no surprise since we are Thailand's oldest and largest auto exporter thanks to our 100 years old commitment to honesty, integrity, professionalism, great prices, great quality, great service and quick delivery. Toyota Vigo Double Cab remain our top seller but Toyota Hilux Vigo Single Cab and Toyota Hilux Vigo Extra Cab are not that far behind in their popularity. Please try Thailand's and Dubai's top Vigo exporter to purchase your next Toyota Hilux Vigo by emailing us at [email protected]. If you are looking for Toyota Thailand Hilux Vigo, Toyota Thaland Fortuner or any other Toyota products from Thailand Jim Autos Thailand is the place. Our Dubai outfit Jim Autos Dubai can get you Toyota Landcruiser, Toyota Prado, Toyota RAV-4 and other LHD Toyota offering.
Hilux Vigo Intro
Jim Autos as Thailand's and Dubai's top 4x4 dealer and Thailand's top 4x4 exporter receives thousands of emails and calls from every corner of the world in our showrooms in Thailand, Dubai and Singapore. Almost 80% of these queries are regarding importation of Hilux Vigo in their respective countries. This should give us a sense of Hilux Vigo's worldwide popularity. We have exported new RHD, converted LHD and LHD Toyota Hilux and nearly new Thailand Toyota Vigo to around 100 countries and counting. We export both brand new (zero meter) and used (second-hand or pre-owned) models. We not only export Toyota Hilux Vigo but also earlier models as Toyota Hilux Tiger and Toyota Hilux Sportsrider. Whether you need to reach Jim Autos Thailand for new Toyota Vigo, or Jim 4x4 Thailand, for nearly new and quality used 2015 2016 Toyota Hilux Vigo or Jim Autos Dubai for new, nearly new or used Toyota Hilux Vigo; an email at [email protected] will connect you to all Jim companies in United Kingdom, Thailand, Singapore and Dubai.
We have streamlined this page for easier navigability. Here are various links that branch from this page:
- Hilux Vigo Features
Here you learn about distinctive Toyota Hilux Vigo Styling and 4WD. Click here for features of 2012 Hilux Vigo. - Hilux Vigo D4D Engine and TOP
platform
D4D engine in two flavors: 1KD-FTV for the 3.0 Vigo and 2KD-FTV for 2.5 Vigo and no FTV does not stand for Fashion TV. - Differences between Toyota Vigo G, E
and J
Is Vigo J turbo intercooler. Does Vigo E has the driver-side airbag and ABS? Find all about this in this page - Vigo G to Vigo V
Arrival of Fortuner V has created a stir and there were many requests to duplicate these features in Vigo. We have acceded to our customers requests and are now upgrading Vigo G with the feature set of Fortuner V notably addition of passenger-side airbag to complement the driver-side airbag - Toyota
Hilux Tiger or
Detailed Tiger page
Earlier versions of Toyota Hilux prior to Toyota Hilux Vigo are known by different names but in Thailand all are dubbed as Toyota Hilux Tiger. You can see Toyota Hilux Tiger EFI 2000-2001 pics page and Toyota Hilux D4D 2002-2004 pics page for more information. We are exporting quality used Tiger and Vigoes to Asia, Africa and the Americas both in RHD and in converted LHD configurations and they can be purchased from us directly or through our Dubai subsidiary Jim Autos Dubai - Toyota
Hilux Vigo Single Cab
All the specifications of different Vigo Single Cab models - Toyota
Hilux Vigo Extra Cab
All the specifications of different Vigo Extra Cab models - Toyota
Hilux Vigo Double Cab
All the specifications of different Vigo Double Cab models. Also check out Toyota Double Cab 4x4 Double Cab G pics page - Toyota Hilux Petrol 2.7
G
Limited information on VVT-i Gasoline (Petrol) Engine Toyota Hilux Vigo
It would not be wrong to say that Vigo has taken the world by storm and it has reshaped the 4x4 landscape. Even though Mitsubishi L200 Triton and Nissan Navara have posed strong challenge the leader Vigo is still at the head of the pack. With its great style and comfort and its fi lving for a versatile alternative to a conventional car as their day-to-day transport. And, of course, the vehicle’s rugged qualities as a tough off road 4x4 make it a dream truck for mountainous regions. Its ruggedness makes it popular with tribal chiefs and its style and comfort endear it to busy urban executives. This is why we are exporting this beautiful and sturdy beast to five continents in the world. with its impressive 3200 cc prowess has posed a mighty challenge, it is still behind Vigo and Fortuner. The recently released Nissan Navara is proving to be a serious challenger for Vigo's crown.
Here are some additional pages on Toyota Hilux Vigo: Toyota Vigo, Vigo Thailand, Toyota Vigo Thailand. We are Thailand's top Vigo exporter, Thailand top pickup exporter and if you are looking for Toyota Vigo parts and accessories we are it.
If you have envied Fortuner owners for their Fortuner V then envy no more. oni Motors is proud to be the only Thailand dealer to offer Vigo V Limited Edition. Read below to see the details. The pics to follow soon.
If you know what you want, send us a quick email at [email protected]. We promise to get back to you as soon as possible.
The Hilux Vigo made its debut at the Tokyo Motor Show as one of the stars and the rest as they say is history. Its new top-of-the-range model that combined the Hilux’s robust character with plenty of street style and premium features has caught the imagination of driving population of the world.
The top-of-the-line Hilux Vigo 3.0 G is our biggest seller and we are sending it to over 100 countries as diverse as South Africa, Zimbabwe, Namibia, Trinidad, Barbados, Suriname, and Pakistan. It comes with Vigo branding, air conditioning, power steering, alarm & immobiliser, high quality carpet mats, six-disc in dash CD autochanger with radio cassette, brushed metal scuff plates, and optional dark-tinted privacy glass for the rear windows. On the outside there are 16-inch alloy wheels, colour coded bumpers, front spotlamps, chrome mirrors, eye-catching chrome plated rear tubular bumper, optional dark-tinted privacy glass for the rear windows, rear mud guards, high line brake light, rear defroster, silver grey double coach-line and chrome "Vigo" badging.

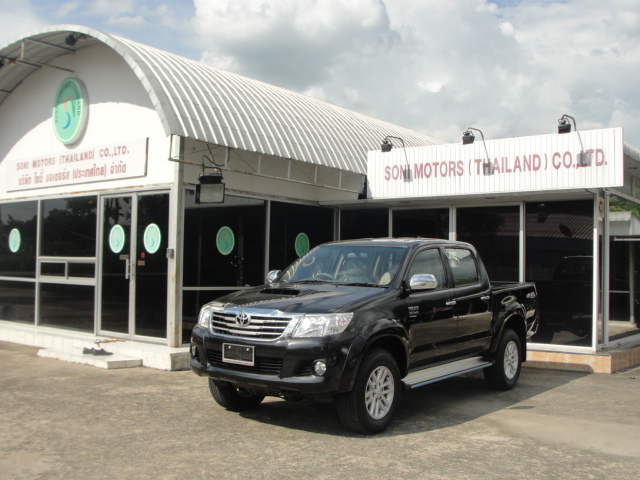

Toyota Hilux Vigo Champ 2012 on sale for sale at Thailand's top dealer Jim Autos Thailand, Singapore best dealer and exporter Singapore Motors Jim and Great Britain's Most Trusted Car, Pickup, SUV, Van, Truck and Buses Exporter Jim Autos United Kingdom
Toyota Motors has released 2012 Toyota Hilux Vigo. extensively revised the interiors of the 2012 Hilux with a refined design that reinforces the pick-up’s credentials as a leisure vehicle. The interior features a new upper dashboard design in which a new, horizontal centre instrument cluster reinforces the breadth and roominess of the cabin.
In the outside, the front of the 2012 Toyota Hilux is entirely redesigned from the A pillar forwards and features a new bonnet, radiator grille, headlamps and front bumper. The vehicle’s design also gets further enhanced with the newly designed front and rear wings and new door mirrors. Vigo 2012 is available in the following colors: Super White, Silver Metallic, Dark Steel Mica, Dark Grey Mica, Silky Gold Metallic and Black Mica.
It is a significant "minor" change with an exciting new front look and a revamped interior to reinforce its luxuriousness. With the exception of doors, roofs and tailgates, everything else is new: new guards, new headlights, new bumper, new bonnet, new three-bar grille, new tailights and a new rear bumper. There’s also new mirrors and alloy wheel designs.
The front of the Hilux 2012 is entirely redesigned from the A pillar forwards, with a new bonnet, radiator grille, headlamps and front bumper. The vehicle profile is further enhanced by newly designed front and rear wings, redesigned 15" and 17" steel and alloy wheels, and new door mirrors. The interior features a new upper dashboard design in which a new, horizontal centre instrument cluster shows off the breadth and roominess of the cabin.Orders are poring in. Perceived quality has been improved through the adoption of uniformly darker finishes with a greater colour consistency throughout the interior. The G version now comes with Fortuner like Electric Seat and Bluetooth.
Even though Toyota Hilux Vigo Thailand is our most popular Toyota Hilux, used Toyota Hilux from our United Kingdom division Jim Autos UK are selling very quickly especially those manufactured in Thailand. Toyota Hilux Vigo is often mispronounced as Toyota Vego or Toyota Virgo, not matter how you choose to spell it, it is still the luxury pickup we have all come to admire and love so much.
Existing Toyota Hilux Vigo Accessories will work on 2012 Toyota Hilux Vigo.
Our London, England, Great Britain Division Jim Autos United Kingdom can provide new and used Toyota Hilux 4WD D-4D HL2, Toyota Hilux D-4D HL2, Toyota Hilux D-4D HL3 and Toyota Hilux D-4D Invincible.
Bargains and great deals are always available at world's largest Hilux Dealer. Whether you are looking for 2500 Toyota Hilux D-4D, 3000 cc Toyota Hilux D-4D, 2500 Toyota Hilux Vigo D-4D, or 3000 cc Toyota Hilux Vigo D-4D our Thailand, Singapore, Dubai and United Kingdom divisions are ready to give you highest quality vehicle at lowest price in town.
Brand new 2016, 2017 Toyota Hilux Vigo has the following features:
2012 Toyota Hilux Vigo New Features in Exterior | |||
---|---|---|---|
New Landcruiser like Grill |
Bold Wider Vent |
New Halogen Headlights |
New Tail Lights |
Side Mirror with Indicator |
Streamlined Aerial |
Jam Protection in Power Windows |
New Rim Style |
2012 Toyota Hilux Vigo New Features in Vehicle Interior | |||
---|---|---|---|
New Fortuner Steering with Controls |
Beautiful Gears |
New Optitron Meter |
Cruise Control |
Touch Screen 2 DIN CD DVD/CD/MP3/WMA |
Bluetooth Connectivity |
New USB AUX Connection |
All Information At your Fingetips |
Power Seat |
Retractable Seat |
2011 2012 2013 Toyota Hilux Vigo Double Cab available for sale on Sale at Thailand top Dealer
2012 2013 Toyota Hilux Vigo Double Cab especially Toyota Hilux Vigo Double Cab 4x4 in manual and Auto are the best selling Toyota Hilux Vigo in both Right Hand Drive and Left Hand Drive.
Toyota Hilux Vigo 2012 Double Cab 4x4 2500 cc and 3000 cc 4 Wheel Drive Specifications
Toyota Hilux Vigo Grades | 4x4 3.0G Auto | 4x4 3.0G | 4x4 2.5E | 4x2 2.7E VVT-i |
---|---|---|---|---|
Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | ||||
Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,760 x 1,735 |
Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 | 1,510 / 1,510 |
Min. Ground Clearance (mm.) | 222 | 222 | 222 | 181 |
Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
Weight (kg.) | 1870 | 1845 | 1825 | 1635 |
Engine | ||||
Model | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2TR-FE |
Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VVT-i |
Displacement (cc.) | 2982 | 2982 | 2494 | 2694 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 96.0 x 103.0 | 92.0 x 93.8 | 95.0 x 95.0 |
Compression Ratio | 17.9:1 | 17.9:1 | 17.4 : 1 | 9.6 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 120 (163) / 3,400 | 106 (144) / 3,400 | 118 (160) / 5,200 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 241 / 3,800 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | EFI |
Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel | Benzene 91 or above |
Transmission & Chassis | ||||
Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 3.83 |
Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.062 |
Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.436 |
Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
Gear Ratio 5 | - | 0.838 | 0.788 | 0.838 |
Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.22 |
Center differential | 3.909 | 3.583 | 3.727 | 4.1 |
Front suspension | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer |
Rear suspension | Rigid type and leaf spring with limited slip | Rigid type and leaf spring with limited slip | Rigid type and Leaf spring with limited slip | Rigid type and leaf spring |
Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 6.4 | 6.4 | 6.4 | 5.9 |
Power Steering Type | yes | yes | yes | yes |
Tires | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 | 215 / 65R16C |
Wheel | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 6Jx16 inches |
Spare Tire | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 215/65R16C |
Exterior | ||||
Front Bumper | Color key | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | Chromium | |
Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
Turbo Scoop | ||||
Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
Front Fog Light | ||||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
Side Step | ||||
Fender Flare | Color key | Color key | Color key | |
Mudguard | Rear only | Rear only | Rear only | Front and rear |
Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | Time intermittent |
Interior | ||||
Optitron Meter | ||||
RPM Gauge | ||||
Distance Meter | Digital | Digital | Digital | Digital |
Multi Information Display | ||||
4x4 Indication Light | ||||
Fuel Gauge | ||||
Fuel Filter Indicator | ||||
Headlamp Alarm | ||||
Key Alarm | ||||
Door Status Warning Lights | ||||
Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
Digital Clock | ||||
Map Lamp (Front) | ||||
Illumination System | ||||
Key Switch Lamp | ||||
Ash Tray | With lamp | With lamp | With lamp | With lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
USB / AUX Port | ||||
Speakers | 6 | 6 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable | Foldable |
Bluetooth | ||||
Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | ||||
Steering Wheel Material | 4 spoke leather, metallic, with audio controller and MID | 4 spoke leather, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane, metallic, with audio controller and MID |
Cruise Control | ||||
Hand Brake | At center console | At center console | At center console | At center console |
Gear Knob | Leather with metallic | Leather | Urethane | Urethane |
4x4 Transmission Knob | ||||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | With mirror and lid |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | ||||
Remote Key | ||||
Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
12 V. Outlets | ||||
Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Synthetic Finished | Mold/ Synthetic Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Door Panel Switch | Metallic | Metallic | Metallic | Metallic |
Front Console | Metallic | Metallic | Metallic | Metallic |
Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Seat Type | Split Type | Split Type | Split Type | Split Type |
Seat's Material | Sand Beige Leathered and Synthetic Leathered | Sand Beige Leathered and Synthetic Leathered | Sand Beige Velvet | Sand Beige Velvet |
Adjustable Front Seat | With electric adjust | With electric adjust | ||
Leanable Front Seat | (driver only) | (driver only) | ||
Height Adjustable Front Seat (Driver) | With electric adjust | With electric adjust | ||
Seat Pillow | (driver only) | (driver only) | ||
Passenger Seat | With electric adjust | With electric adjust | Foldable | |
Passenger Seat Pillow | (driver only) | (driver only) | ||
Fuel Cover Lever | ||||
Center Console Box | Foldable | Foldable | With cover lid | With cover lid |
Upper Box | ||||
Front Console Box | With key lock | With key lock | ||
Glasses Console Box | With cover lid | With cover lid | At map lamp position | At map lamp position |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | ||
Glass Holder | With key lock | With key lock | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger |
Footrest | ||||
Safety | ||||
ABS (Anti-Lock Braking System) | ||||
Hi Mouth Stop Lamp | ||||
Rear Window Defogger | ||||
Back camera | ||||
Crash Body Safety GOA | ||||
Side Bar Protection | Front and rear | Front and rear | ||
Windshield Glass | Laminated with tint | Laminated with tint | ||
SRS Airbag | ||||
Front Seatbelt | Front and rear | Front and rear | 3 ELR 2 positions | 3 ELR 2 positions |
Rear Seatbelt | Laminated with tint | Laminated with tint | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
Adjustable Seat Belt | Driver and front passenger | Driver and front passenger | 1 position | 1 position |
Absorbing Door Structure | 3 ELR 2 positions | 3 ELR 2 positions | Driver and front passenger | Driver and front passenger |
Collapsible Steering Column | ||||
Collapsible Brake Pad | ||||
Automatic Fuel Cut - Off Valve |
Toyota Hilux Vigo 2012 Double Cab 4x2 2500 cc and 3000 cc 2 Wheel Drive Specifications
Toyota Hilux Vigo Grades | 4x2 3.0G Auto | 4x2 2.5G | 4x2 2.5E | 4x2 2.5J-PS |
---|---|---|---|---|
Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | ||||
Overall Length x Width x Height (mm.) | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 | 5,135 x 1,760 x 1,735 |
Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 |
Min. Ground Clearance (mm.) | 181 | 181 | 181 | 181 |
Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
Weight (kg.) | 1680 | 1615 | 1615 | 1615 |
Engine | ||||
Model | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV |
Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo |
Displacement (cc.) | 2982 | 2494 | 2494 | 2494 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 | 92.0 x 93.8 |
Compression Ratio | 17.9 : 1 | 17.4 : 1 | 17.4 : 1 | 18.5:1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 106 (144) / 3,400 | 106 (144) / 3,400 | 75 (102) / 3,600 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 343 / 1,600-2,800 | 200 / 1,400-3,400 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel | Diesel |
Transmission & Chassis | ||||
Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 3.928 |
Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.333 |
Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.451 |
Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
Gear Ratio 5 | - | 0.788 | 0.788 | 0.798 |
Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.743 |
Center differential | 3.727 | 3.583 | 3.583 | 4.1 |
Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
Rear suspension | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring |
Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 5.9 | 5.9 | 5.9 | 5.9 |
Power Steering Type | yes | yes | yes | yes |
Tires | 215 / 65R16C | 215 / 65R16C | 215 / 65R16C | 205 / 70R15C |
Wheel | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Alloy 6Jx16 inches | Steel wheel with full cap (6JJx15 inches size) |
Spare Tire | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 205 / 70R15C |
Exterior | ||||
Front Bumper | Color key | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | ||
Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Black and Grey |
Turbo Scoop | ||||
Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
Front Fog Light | ||||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
Side Step | ||||
Fender Flare | ||||
Mudguard | Front and rear | Front and rear | Front and rear | Front and rear |
Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | 3 step adjustable |
Interior | ||||
Optitron Meter | ||||
RPM Gauge | ||||
Distance Meter | Digital | Digital | Digital | Digital |
Multi Information Display | ||||
4x4 Indication Light | ||||
Fuel Gauge | ||||
Fuel Filter Indicator | ||||
Headlamp Alarm | ||||
Key Alarm | ||||
Door Status Warning Lights | ||||
Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
Digital Clock | ||||
Map Lamp (Front) | ||||
Illumination System | ||||
Key Switch Lamp | ||||
Ash Tray | With lamp | With lamp | With lamp | Without lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
USB / AUX Port | ||||
Speakers | 6 | 4 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable | Foldable |
Bluetooth | ||||
Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | ||||
Steering Wheel Material | 4 spoke urethan, metallic, with audio controller and MID | 4 spoke urethan, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane |
Cruise Control | ||||
Hand Brake | At center console | At center console | At center console | At center console |
Gear Knob | Urethane | Urethane | Urethane | Urethane |
4x4 Transmission Knob | ||||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | Without mirror |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | ||||
Remote Key | ||||
Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
12 V. Outlets | ||||
Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Door Panel Switch | Metallic | Metallic | Metallic | Console panel color |
Front Console | Metallic | Metallic | Metallic | Console panel color |
Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Seat Type | Split Type | Split Type | Split Type | Split Type |
Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet | Grey Semi Velvet |
Adjustable Front Seat | ||||
Leanable Front Seat | ||||
Height Adjustable Front Seat (Driver) | ||||
Seat Pillow | ||||
Passenger Seat | Foldable | Foldable | Foldable | Foldable |
Passenger Seat Pillow | ||||
Fuel Cover Lever | ||||
Center Console Box | With cover lid | With cover lid | With cover lid | Without cover lid |
Upper Box | ||||
Front Console Box | With key lock | With key lock | With key lock | With key lock |
Glasses Console Box | At map lamp position | At map lamp position | At map lamp position | |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
Glass Holder | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console |
Footrest | ||||
Safety | ||||
ABS (Anti-Lock Braking System) | ||||
Hi Mouth Stop Lamp | ||||
Rear Window Defogger | ||||
Back camera | ||||
Crash Body Safety GOA | ||||
Side Bar Protection | Front and rear | Front and rear | Front and rear | Front and rear |
Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint | Laminated |
SRS Airbag | Driver and front passenger | Driver and front passenger | ||
Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
Rear Seatbelt | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
Adjustable Seat Belt | 1 position | 1 position | 1 position | 1 position |
Absorbing Door Structure | Driver and front passenger | Driver and front passenger | Driver and front passenger | Driver and front passenger |
Collapsible Steering Column | ||||
Collapsible Brake Pad | ||||
Automatic Fuel Cut - Off Valve |
Toyota Hilux Vigo 2012 Double Cab 4x2 Prerunner (2x4) 2500 cc and 3000 cc 2 Wheel Drive Raised to the Height of 4x4 Specifications
Toyota Hilux Vigo Grades | Prerunner 3.0G Auto | Prerunner 3.0G | Prerunner 2.5E ABS | Prerunner 2.5E |
---|---|---|---|---|
Transmission: | 4 A/T | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | ||||
Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 | 5,135 x 1,835 x 1,860 |
Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 |
Min. Ground Clearance (mm.) | 222 | 222 | 222 | 222 |
Deck inside L x W x H (mm.) | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 | 1,520 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 | 2,130 x 1,475 x 1,195 |
Weight (kg.) | 1780 | 1730 | 1650 | 1650 |
Engine | ||||
Model | 1KD-FTV(I/C) | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) |
Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo Intercooler |
Displacement (cc.) | 2982 | 2982 | 2494 | 2494 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 |
Compression Ratio | 17.9 : 1 | 17.9 : 1 | 17.4 : 1 | 18.5 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 120 (163) / 3,400 | 106 (144) / 3,400 | 88 (120) / 3,600 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 325 / 2,000 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel | Diesel |
Transmission & Chassis | ||||
Gear Ratio 1 | 2.804 | 4.313 | 4.313 | 4.313 |
Gear Ratio 2 | 1.531 | 2.33 | 2.33 | 2.33 |
Gear Ratio 3 | 1 | 1.436 | 1.436 | 1.436 |
Gear Ratio 4 | 0.705 | 1 | 1 | 1 |
Gear Ratio 5 | - | 0.838 | 0.788 | 0.788 |
Reverse Gear Ratio | 2.393 | 4.22 | 4.22 | 4.22 |
Center differential | 3.909 | 3.727 | 3.727 | 3.727 |
Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
Rear suspension | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring | Rigid type and leaf spring |
Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
Rear brake | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV | Drum LTS with super LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 6.3 | 6.3 | 6.3 | 6.3 |
Power Steering Type | yes | yes | yes | yes |
Tires | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 | 265 / 65 R17 |
Wheel | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches | Alloy 7.5Jx17 inches |
Spare Tire | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 | Steel wheel 265 / 65 R17 |
Exterior | ||||
Front Bumper | Color key | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | Chromium | Chromium |
Front Grill | Color key with chromium | Color key with chromium | Color key with chromium | Color key with chromium |
Turbo Scoop | ||||
Headlight | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen | Multi reflector halogen |
Front Fog Light | ||||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromed Grip type | Chromed Grip type | Chromed Grip type | Chromed Grip type |
Side Step | ||||
Fender Flare | Color key | Color key | Color key | Color key |
Mudguard | Rear only | Rear only | Rear only | Rear only |
Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | Time intermittent |
Interior | ||||
Optitron Meter | ||||
RPM Gauge | ||||
Distance Meter | Digital | Digital | Digital | Digital |
Multi Information Display | ||||
4x4 Indication Light | ||||
Fuel Gauge | ||||
Fuel Filter Indicator | ||||
Headlamp Alarm | ||||
Key Alarm | ||||
Door Status Warning Lights | ||||
Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
Digital Clock | ||||
Map Lamp (Front) | ||||
Illumination System | ||||
Key Switch Lamp | ||||
Ash Tray | With lamp | With lamp | With lamp | With lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 DVD/ MP3 and WMA with 6.1" Touch Screen | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
USB / AUX Port | ||||
Speakers | 6 | 6 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable | Foldable |
Bluetooth | ||||
Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | ||||
Steering Wheel Material | 4 spoke urethane, metallic, with audio controller and MID | 4 spoke urethane, metallic, with audio controller and MID | 4 spoke urethane, metallic | 4 spoke urethane, metallic |
Cruise Control | ||||
Hand Brake | At center console | At center console | At center console | At center console |
Gear Knob | Urethane | Urethane | Urethane | Urethane |
4x4 Transmission Knob | ||||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | With mirror and lid |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | ||||
Remote Key | ||||
Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
12 V. Outlets | ||||
Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Door Panel Switch | Metallic | Metallic | Metallic | Metallic |
Front Console | Metallic | Metallic | Metallic | Metallic |
Door Panel Armrest | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Seat Type | Split Type | Split Type | Split Type | Split Type |
Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet |
Adjustable Front Seat | ||||
Leanable Front Seat | ||||
Height Adjustable Front Seat (Driver) | ||||
Seat Pillow | ||||
Passenger Seat | Foldable | Foldable | Foldable | Foldable |
Passenger Seat Pillow | ||||
Fuel Cover Lever | ||||
Center Console Box | With cover lid | With cover lid | With cover lid | With cover lid |
Upper Box | ||||
Front Console Box | With key lock | With key lock | With key lock | With key lock |
Glasses Console Box | At map lamp position | At map lamp position | At map lamp position | At map lamp position |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
Glass Holder | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger | 2 at front console/ 2 for rear passenger |
Footrest | ||||
Safety | ||||
ABS (Anti-Lock Braking System) | ||||
Hi Mouth Stop Lamp | ||||
Rear Window Defogger | ||||
Back camera | ||||
Crash Body Safety GOA | ||||
Side Bar Protection | Front and rear | Front and rear | Front and rear | Front and rear |
Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint | Laminated with tint |
SRS Airbag | Driver and front passenger | Driver and front passenger | ||
Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
Rear Seatbelt | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR | 3 ELR 2 positions and 2 NR |
Adjustable Seat Belt | 1 position | 1 position | 1 position | 1 position |
Absorbing Door Structure | Driver and front passenger | Driver and front passenger | Driver and front passenger | Driver and front passenger |
Collapsible Steering Column | ||||
Collapsible Brake Pad | ||||
Automatic Fuel Cut - Off Valve |
2012 Toyota Hilux Vigo Champ Single Cab available now at Thailand top dealer Jim Autos Thailand
2012 Toyota Hilux Vigo Single Cab and Extra Cab
Toyota Hilux Vigo Single Extra Cab Grades | Standard Cab 3.0 J-PS | Standard Cab 2.5 J-PS | Standard Cab 2.5 J | X-tra Cab 2.5 J-PS | 2.7J-PS VVT-i (Benzene) |
---|---|---|---|---|---|
Transmission: | 5 M/T | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | |||||
Overall Length x Width x Height (mm.) | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,680 | 5,135 x 1,760 x 1,720 | 5,130 x 1,760 x 1,680 |
Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 |
Min. Ground Clearance (mm.) | 181 | 181 | 181 | 181 | 181 |
Deck inside L x W x H (mm.) | 2,315 x 1,520 x 450 | 2,315 x 1,520 x 450 | 2,315 x 1,520 x 450 | 1,805 x 1,515 x 450 | 2,315 x 1,520 x 450 |
Interior Dimension - L x W x H (mm.) | 1,340 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,340 x 1,475 x 1,190 |
Weight (kg.) | 1520 | 1450 | 1450 | 1530 | 1500 |
Engine | |||||
Model | 1KD-FTV (I/C) | 2KD-FTV | 2KD-FTV | 2KD-FTV | 2TR-FE |
Type | 4 cyl 16 valve DOHC VN turbo Intercooler | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC turbo | 4 cyl 16 valve DOHC VVT-i |
Displacement (cc.) | 2982 | 2494 | 2494 | 2494 | 2694 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 | 92.0 x 93.8 | 95.0 x 95.0 |
Compression Ratio | 17.9 : 1 | 18.5 : 1 | 18.5 : 1 | 18.5 : 1 | 9.6 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 75 (102) / 3,600 | 75 (102) / 3,600 | 75 (102) / 3,600 | 118 (160) / 5,200 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 200 / 1,400-3,400 | 200 / 1,400-3,400 | 200 / 1,400-3,400 | 241 / 3,800 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | EFI |
Fuel Capacity (liter) | 76 | 76 | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel | Diesel | Benzene 91 or above |
Transmission & Chassis | |||||
Gear Ratio 1 | 4.313 | 3.928 | 3.928 | 3.928 | 3.83 |
Gear Ratio 2 | 2.33 | 2.333 | 2.333 | 2.333 | 2.062 |
Gear Ratio 3 | 1.436 | 1.451 | 1.451 | 1.451 | 1.436 |
Gear Ratio 4 | 1 | 1 | 1 | 1 | 1 |
Gear Ratio 5 | 0.838 | 0.798 | 0.798 | 0.798 | 0.838 |
Reverse Gear Ratio | 4.22 | 4.743 | 4.743 | 4.743 | 4.22 |
Center differential | 3.583 | 4.1 | 4.1 | 4.1 | 4.1 |
Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
Rear suspension | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring |
Front brake | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc | Ventilated disc |
Rear brake | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV | Drum LTS with Super LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 5.9 | 5.9 | 5.9 | 5.9 | 5.9 |
Power Steering Type | |||||
Tires | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C | 205 / 70R15C |
Wheel | Steel wheel with full cap (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) | Steel wheel (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) | Steel wheel with full cap (6JJx15 in size) |
Spare Tire | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C | Steel wheel 205/70R15C |
Exterior | |||||
Front Bumper | Color key | Color key | Color key | Color key | Color key |
Front Grill | Black & Grey | Black & Grey | Black & Grey | Black & Grey | Black & Grey |
Turbo Scoop | |||||
Headlight | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen | Multi-reflector halogen |
Side Mirror | Black, manual adjust | Black, manual adjust | Black, manual adjust | Black, manual adjust | Black, manual adjust |
Side Door Handle | Black Grip type | Black Grip type | Black Grip type | Black Grip type | Black Grip type |
Mudguard | Front & back | Front & back | Front & back | Front & back | Front & back |
Rain Wiper (Front) | 3 step adjustable | 3 step adjustable | 3 step adjustable | 3 step adjustable | 3 step adjustable |
Interior | |||||
RPM Gauge | |||||
Distance Meter | Digital | Digital | Digital | Digital | Digital |
Fuel Gauge | |||||
Fuel Filter Indicator | |||||
Headlamp Warning Light | |||||
Key Alarm | |||||
Door Status Warning Lights | |||||
Seat Belt Indicator | Driver only | Driver only | Driver only | With walk-in system | Driver only |
Digital Clock | |||||
Illumination System | |||||
Ash Tray | Without lamp | Without lamp | Without lamp | Without lamp | Without lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA | 2 DIN 1 CD/ MP3 and WMA |
USB / AUX Port | |||||
Speakers | 2 | 2 | 2 | 2 | 2 |
Antenna | Built-in at front column | Built-in at front column | Built-in at front column | Foldable | Built-in at front column |
Air Conditioning System | knob controller | knob controller | knob controller | knob controller | knob controller |
Steering Wheel | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable | 3 spoke urethane, adjustable |
Parking brake | Center console | Center console | Center console | Center console | Center console |
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | Without mirror | Without mirror | Without mirror | Without mirror | Without mirror |
Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color | Console panel color |
Door Panel | Mold | Mold | Mold | Mold | Mold |
Front Console | Interior color | Interior color | Interior color | Interior color | Interior color |
Door Panel Switch | Console panel color | Console panel color | Console panel color | Console panel color | Console panel color |
Seat Type | Split Type 60 : 40 for 3 persons | Split Type 60 : 40 for 3 persons | Split Type 60 : 40 for 3 persons | Split Type | Split Type 60 : 40 for 3 persons |
Seat's Material | Grey Vinyle | Grey Vinyle | Grey Vinyle | Grey Semi-Velvet | Grey Vinyle |
Adjustable Front Seat | Driver only | Driver only | Driver only | With Walk-in system | Driver only |
Leanable Front Seat | |||||
Fuel Cover Lever | |||||
Center Console Box | Without lid | ||||
Upper Box | |||||
Front Console Box | With key lock | With key lock | With key lock | With key lock | With key lock |
Door Panel Storage | with bottle holder | with bottle holder | with bottle holder | with bottle holder at front & cab | with bottle holder |
Glass Holder | 2 at front console | 2 at front console | 2 at front console | 2 at front console | 2 at front console |
Footrest | |||||
Safety Features | |||||
Crash Body Safety GOA | |||||
Side Bar Protection | |||||
Windshield Glass | Laminated | Laminated | Laminated | Laminated | Laminated |
Front Seatbelt | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions and 2 NR 1 position | 3 ELR 2 positions | 3 ELR 2 positions and 2 NR 1 position |
Adjustable Seat Belt | Driver and passenger | ||||
Absorbing Door Structure | |||||
Collapsible Steering Column | |||||
Collapsible Brake Pad | |||||
Automatic Fuel Cut - Off Valve |
2012 2013 Toyota Hilux Vigo Smart Extended Cab on Sale at Jim Autos Thailand
2012 2013 Toyota Hilux Vigo Smart 4x2 Extended Cab 2 Wheel Drive
Vigo Smart Cab Grades | 4x2 3.0G | 4x2 2.5G | 4x2 2.5E | 4x2 2.5J-PS |
---|---|---|---|---|
Transmission: | 5 M/T | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | ||||
Overall Length x Width x Height (mm.) | 5,135 x 1,760 x 1,720 | 5,135 x 1,760 x 1,720 | 5,135 x 1,760 x 1,720 | 5,135 x 1,760 x 1,720 |
Wheelbase (mm.) | 3085 | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 | 1,510 / 1,510 |
Min. Ground Clearance (mm.) | 181 | 181 | 181 | 181 |
Deck inside L x W x H (mm.) | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 |
Weight (kg.) | 1550 | 1540 | 1540 | 1540 |
Engine | ||||
Model | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV |
Type | 4 cyl 16 valve DOHC VN Turbo Intercooler | 4 cyl 16 valve DOHC Turbo Intercooler | 4 cyl 16 valve DOHC Turbo Intercooler | 4 cyl 16 valve DOHC Turbo |
Displacement (cc.) | 2982 | 2494 | 2494 | 2494 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 | 92.0 x 93.8 |
Compression Ratio | 17.9 : 1 | 18.5 : 1 | 18.5 : 1 | 18.5 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 88 (120) / 3,600 | 88 (120) / 3,600 | 75 (102) / 3,600 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 325 / 2,000 | 325 / 2,000 | 200 / 1,400-3,400 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
Fuel Capacity (liter) | 76 | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel | Diesel |
Transmission & Chassis | ||||
Gear Ratio 1 | 4.313 | 4.313 | 4.313 | 3.928 |
Gear Ratio 2 | 2.33 | 2.33 | 2.33 | 2.333 |
Gear Ratio 3 | 1.436 | 1.436 | 1.436 | 1.451 |
Gear Ratio 4 | 1 | 1 | 1 | 1 |
Gear Ratio 5 | 0.838 | 0.788 | 0.788 | 0.798 |
Reverse Gear Ratio | 4.22 | 4.22 | 4.22 | 4.743 |
Center differential | 3.583 | 3.583 | 3.583 | 4.1 |
Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
Rear suspension | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring |
Front brake | Disc brake / Ventilated disc | Disc brake / Ventilated disc | Disc brake / Ventilated disc | Disc brake / Ventilated disc |
Rear brake | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 5.9 | 5.9 | 5.9 | 5.9 |
Power Steering Type | ||||
Tires | 215 / 65R16C | 215 / 65R16C | 215 / 65R16C | 205 / 70R15C |
Wheel | 6J x 16" alloy wheels | 6J x 16" alloy wheels | 6J x 16" alloy wheels | Steel wheel with full cap (6JJx15" size) |
Spare Tire | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 215/65R16C | Steel wheel 205/70R15C |
Exterior | ||||
Front Bumper | Color key | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | ||
Front Grill | With chromium | With chromium | With chromium | With chromium |
Turbo Scoop | ||||
Headlight | Multi reflector Halogen | Multi reflector Halogen | Multi reflector Halogen | Multi reflector Halogen |
Front Fog Light | ||||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromium Grip type | Chromium Grip type | Chromium Grip type | Chromium Grip type |
Side Step | ||||
Fender Flare | ||||
Mudguard | Front and rear | Front and rear | Front and rear | Front and rear |
Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent | 3 step adjustable |
Interior | ||||
Optitron Meter | ||||
RPM Gauge | ||||
Distance Meter | Digital | Digital | Digital | Digital |
Multi Information Display | ||||
4x4 Indication Light | ||||
Fuel Gauge | ||||
Fuel Filter Indicator | ||||
Headlamp Alarm | ||||
Key Alarm | ||||
Door Status Warning Lights | ||||
Seat Belt Indicator | Driver and front passenger | Driver and front passenger | Driver only | Driver only |
Digital Clock | ||||
Map Lamp (Front) | ||||
Illumination System | ||||
Key Switch Lamp | ||||
Ash Tray | With lamp | With lamp | With lamp | Without lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA |
USB / AUX Port | ||||
Speakers | 4 | 4 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable | Foldable |
Air Conditioning System | With knob controller | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | ||||
Steering Wheel Material | 4 spoke urethane, metallic with audio control and MID | 4 spoke urethane, metallic with audio control and MID | 4 spoke urethane, metallic | 4 spoke urethane |
Hand Brake | At center console | At center console | At center console | At center console |
4x4 Transmission Knob | ||||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid | Without mirror |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | ||||
Remote Key | ||||
Theft Deterrent System (TDS) | With immobilizer key | With immobilizer key | ||
12 V. Outlets | ||||
Inside Door Handle | Console panel color | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Front Console | Metallic | Metallic | Console panel color | Console panel color |
Door Panel Switch | Metallic | Metallic | Console panel color | Console panel color |
Seat Type | Split type | Split type | Split type | Split type |
Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet | Grey Semi Velvet |
Adjustable Front Seat | ||||
Leanable Front Seat | ||||
Height Adjustable Front Seat (Driver) | ||||
Seat Pillow | ||||
Fuel Cover Lever | ||||
Center Console Box | With cover lid | With cover lid | With cover lid | With cover lid |
Upper Box | ||||
Front Console Box | With key lock | With key lock | With key lock | With key lock |
Glasses Console Box | At map lamp position | At map lamp position | At map lamp position | |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
Glass Holder | 2 at front console | 2 at front console | 2 at front console | 2 at front console |
Footrest | ||||
Safety | ||||
ABS (Anti-Lock Braking System) | ||||
Hi Mouth Stop Lamp | ||||
Rear Window Defogger | ||||
Crash Body Safety GOA | ||||
Side Bar Protection | ||||
Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint | Laminated |
SRS Airbag | Driver and front passenger | Driver and front passenger | ||
Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
Adjustable Seat Belt | Driver and front passenger | Driver and front passenger | Driver and front passenger | Driver and front passenger |
Absorbing Door Structure | ||||
Collapsible Steering Column | ||||
Collapsible Brake Pad | ||||
Automatic Fuel Cut - Off Valve |
2012 Toyota Hilux Vigo Smart 4x2 Extended Cab 2 Wheel Drive Prerunner raised to the height of 4x4
Vigo Smart Cab Grades | Prerunner 3.0G | Prerunner 2.5E ABS | Prerunner 2.5E |
---|---|---|---|
Transmission: | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | |||
Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,845 | 5,135 x 1,835 x 1,845 | 5,135 x 1,835 x 1,845 |
Wheelbase (mm.) | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,540 / 1,540 |
Min. Ground Clearance (mm.) | 222 | 222 | 222 |
Deck inside L x W x H (mm.) | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 |
Weight (kg.) | 1570 | 1560 | 1550 |
Engine | |||
Model | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2KD-FTV(I/C) |
Type | 4 cyl 16 valve DOHC VN Turbo Intercooler | 4 cyl 16 valve DOHC VN Turbo Intercooler | 4 cyl 16 valve DOHC Turbo Intercooler |
Displacement (cc.) | 2982 | 2494 | 2494 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 92.0 x 93.8 |
Compression Ratio | 17.9 : 1 | 17.4 : 1 | 18.5 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 106 (144) / 3,400 | 88 (120) / 3,600 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 325 / 2,000 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | Direct Injection Common-rail |
Fuel Capacity (liter) | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Diesel |
Transmission & Chassis | |||
Gear Ratio 1 | 4.313 | 4.313 | 4.313 |
Gear Ratio 2 | 2.33 | 2.33 | 2.33 |
Gear Ratio 3 | 1.436 | 1.436 | 1.436 |
Gear Ratio 4 | 1 | 1 | 1 |
Gear Ratio 5 | 0.838 | 0.788 | 0.788 |
Reverse Gear Ratio | 4.22 | 4.22 | 4.22 |
Center differential | 3.583 | 3.727 | 3.727 |
Front suspension | Double wishbone with stabilizer | Double wishbone with stabilizer | Double wishbone with stabilizer |
Rear suspension | Rigid type & Leaf spring | Rigid type & Leaf spring | Rigid type & Leaf spring |
Front brake | Disc brake / Ventilated disc | Disc brake / Ventilated disc | Disc brake / Ventilated disc |
Rear brake | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 6.1 | 6.1 | 6.1 |
Power Steering Type | |||
Tires | 265 / 70R16 | 265 / 70R16 | 265 / 70R16 |
Wheel | 7JJ x 16" alloy wheels | 7JJ x 16" alloy wheels | 7JJ x 16" alloy wheels |
Spare Tire | Steel wheel 265/70R16 | Steel wheel 265/70R16 | Steel wheel 265/70R16 |
Exterior | |||
Front Bumper | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | Chromium |
Front Grill | With chromium | With chromium | With chromium |
Turbo Scoop | |||
Headlight | Multi reflector Halogen | Multi reflector Halogen | Multi reflector Halogen |
Front Fog Light | |||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromium Grip type | Chromium Grip type | Chromium Grip type |
Side Step | |||
Fender Flare | Color key | Color key | Color key |
Mudguard | Rear only | Rear only | Rear only |
Rain Wiper (Front) | Time intermittent | Time intermittent | Time intermittent |
Interior | |||
Optitron Meter | |||
RPM Gauge | |||
Distance Meter | Digital | Digital | Digital |
Multi Information Display | |||
4x4 Indication Light | |||
Fuel Gauge | |||
Fuel Filter Indicator | |||
Headlamp Alarm | |||
Key Alarm | |||
Door Status Warning Lights | |||
Seat Belt Indicator | Driver and front passenger | Driver only | Driver only |
Digital Clock | |||
Map Lamp (Front) | |||
Illumination System | |||
Key Switch Lamp | |||
Ash Tray | With lamp | With lamp | With lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA |
USB / AUX Port | |||
Speakers | 4 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable |
Air Conditioning System | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | |||
Steering Wheel Material | 4 spoke urethane, metallic with audio control and MID | 4 spoke urethane, metallic | 4 spoke urethane, metallic |
Hand Brake | At center console | At center console | At center console |
4x4 Transmission Knob | |||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | With mirror and lid |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | |||
Remote Key | |||
Theft Deterrent System (TDS) | With immobilizer key | ||
12 V. Outlets | |||
Inside Door Handle | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Front Console | Metallic | Console panel color | Console panel color |
Door Panel Switch | Metallic | Console panel color | Console panel color |
Seat Type | Split type | Split type | Split type |
Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Sand Beige Velvet |
Adjustable Front Seat | |||
Leanable Front Seat | |||
Height Adjustable Front Seat (Driver) | |||
Seat Pillow | |||
Fuel Cover Lever | |||
Center Console Box | With cover lid | With cover lid | With cover lid |
Upper Box | |||
Front Console Box | With key lock | With key lock | With key lock |
Glasses Console Box | At map lamp position | At map lamp position | At map lamp position |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
Glass Holder | 2 at front console | 2 at front console | 2 at front console |
Footrest | |||
Safety | |||
ABS (Anti-Lock Braking System) | |||
Hi Mouth Stop Lamp | |||
Rear Window Defogger | |||
Crash Body Safety GOA | |||
Side Bar Protection | |||
Windshield Glass | Laminated with tint | Laminated with tint | Laminated with tint |
SRS Airbag | Driver and front passenger | ||
Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
Adjustable Seat Belt | Driver and front passenger | Driver and front passenger | Driver and front passenger |
Absorbing Door Structure | |||
Collapsible Steering Column | |||
Collapsible Brake Pad | |||
Automatic Fuel Cut - Off Valve |
2012 Toyota Hilux Vigo Smart 4x4 Extended Cab 4 Wheel Drive
Vigo Smart Cab 4x4 Grades | 4x4 3.0G | 4x4 2.5E | 4x2 2.7 J VVT-i |
---|---|---|---|
Transmission: | 5 M/T | 5 M/T | 5 M/T |
Dimension and Weight | |||
Overall Length x Width x Height (mm.) | 5,135 x 1,835 x 1,845 | 5,135 x 1,835 x 1,845 | 5,135 x 1,760 x 1,720 |
Wheelbase (mm.) | 3085 | 3085 | 3085 |
Tread Front x Rear (mm.) | 1,540 / 1,540 | 1,540 / 1,540 | 1,510 / 1,510 |
Min. Ground Clearance (mm.) | 222 | 222 | 181 |
Deck inside L x W x H (mm.) | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 | 1,805 x 1,515 x 450 |
Interior Dimension - L x W x H (mm.) | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 | 1,840 x 1,475 x 1,190 |
Weight (kg.) | 1590 | 1580 | 1540 |
Engine | |||
Model | 1KD-FTV(I/C) | 2KD-FTV(I/C) | 2TR-FE |
Type | 4 cyl 16 valve DOHC VN Turbo Intercooler | 4 cyl 16 valve DOHC VN Turbo Intercooler | 4 cyl 16 valve DOHC VVT-i |
Displacement (cc.) | 2982 | 2494 | 2694 |
Bore x Stroke (mm.) | 96.0 x 103.0 | 92.0 x 93.8 | 95.0 x 95.0 |
Compression Ratio | 17.9 : 1 | 17.4 : 1 | 9.6 : 1 |
Max. Power (SAE-Net) [kW(PS)/rpm] | 120 (163) / 3,400 | 106 (144) / 3,400 | 118 (160) / 5,200 |
Max. Power (SAE-Net) (Nm/rpm) | 343 / 1,400-3,200 | 343 / 1,600-2,800 | 241 / 3,800 |
Fuel Supply System | Direct Injection Common-rail | Direct Injection Common-rail | EFI |
Fuel Capacity (liter) | 76 | 76 | 76 |
Emission Standard | EURO3 | EURO3 | EURO3 |
Fuel Type | Diesel | Diesel | Benzene 91 or above |
Transmission & Chassis | |||
Gear Ratio 1 | 4.313 | 4.313 | 3.83 |
Gear Ratio 2 | 2.33 | 2.33 | 2.062 |
Gear Ratio 3 | 1.436 | 1.436 | 1.436 |
Gear Ratio 4 | 1 | 1 | 1 |
Gear Ratio 5 | 0.838 | 0.788 | 0.838 |
Reverse Gear Ratio | 4.22 | 4.22 | 4.22 |
Center differential | 3.583 | 3.727 | 4.1 |
Front suspension | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer and A.D.D. | Double wishbone with stabilizer |
Rear suspension | Rigid type & Leaf spring with limited slip | Rigid type & Leaf spring with limited slip | Rigid type & Leaf spring |
Front brake | Disc brake / Ventilated disc | Disc brake / Ventilated disc | Disc brake / Ventilated disc |
Rear brake | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV | Drum LTS with SUPER LSPV |
Steering system | Rack & Pinion | Rack & Pinion | Rack & Pinion |
Min. Turning Radius (m.) | 6.2 | 6.2 | 5.9 |
Power Steering Type | |||
Tires | 265 / 70R16 | 265 / 70R16 | 205 / 70R15C |
Wheel | 7JJ x 16" alloy wheels | 7JJ x 16" alloy wheels | Steel wheel with full cap (6JJx15" size) |
Spare Tire | Steel wheel 265/70R16 | Steel wheel 265/70R16 | Steel wheel 205/70R15C |
Exterior | |||
Front Bumper | Color key | Color key | Color key |
Rear Bumper | Chromium | Chromium | |
Front Grill | With chromium | With chromium | With chromium |
Turbo Scoop | |||
Headlight | Multi reflector Halogen | Multi reflector Halogen | Multi reflector Halogen |
Front Fog Light | |||
Side Mirror | Chromed, electrical adjust | Chromed, electrical adjust | Chromed, electrical adjust |
Side Door Handle | Chromium Grip type | Chromium Grip type | Chromium Grip type |
Side Step | |||
Fender Flare | Color key | Color key | |
Mudguard | Rear only | Rear only | Front and rear |
Rain Wiper (Front) | Time intermittent | Time intermittent | 3 step adjustable |
Interior | |||
Optitron Meter | |||
RPM Gauge | |||
Distance Meter | Digital | Digital | Digital |
Multi Information Display | |||
4x4 Indication Light | |||
Fuel Gauge | |||
Fuel Filter Indicator | |||
Headlamp Alarm | |||
Key Alarm | |||
Door Status Warning Lights | |||
Seat Belt Indicator | Driver and front passenger | Driver only | Driver only |
Digital Clock | |||
Map Lamp (Front) | |||
Illumination System | |||
Key Switch Lamp | |||
Ash Tray | With lamp | With lamp | Without lamp |
Rear Mirror | Automatic anti-glare | Automatic anti-glare | Automatic anti-glare |
Audio | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA | 2 DIN 1 CD/MP3 and WMA |
USB / AUX Port | |||
Speakers | 4 | 4 | 4 |
Antenna | Foldable | Foldable | Foldable |
Air Conditioning System | With knob controller | With knob controller | With knob controller |
Adjustable Steering Wheel | |||
Steering Wheel Material | 4 spoke urethane, metallic with audio control and MID | 4 spoke urethane, metallic | 4 spoke urethane |
Hand Brake | At center console | At center console | At center console |
4x4 Transmission Knob | |||
Sun Visor (Driver) | With namecard holder | With namecard holder | With namecard holder |
Sun Visor (Passenger) | With mirror and lid | With mirror and lid | Without mirror and lid |
Electric Windows | Automatic with jam-protection for driver | Automatic with jam-protection for driver | Automatic with jam-protection for driver |
Central Lock | |||
Remote Key | |||
Theft Deterrent System (TDS) | With immobilizer key | ||
12 V. Outlets | |||
Inside Door Handle | Console panel color | Console panel color | Console panel color |
Door Panel | Mold/ Velvet Finished | Mold/ Velvet Finished | Mold/ Velvet Finished |
Front Console | Metallic | Console panel color | Console panel color |
Door Panel Switch | Metallic | Console panel color | Console panel color |
Seat Type | Split type | Split type | Split type |
Seat's Material | Sand Beige Velvet | Sand Beige Velvet | Grey Semi Velvet |
Adjustable Front Seat | |||
Leanable Front Seat | |||
Height Adjustable Front Seat (Driver) | |||
Seat Pillow | |||
Fuel Cover Lever | |||
Center Console Box | With cover lid | With cover lid | With cover lid |
Upper Box | |||
Front Console Box | With key lock | With key lock | With key lock |
Glasses Console Box | At map lamp position | At map lamp position | |
Door Panel Storage | Front and rear with bottle holder | Front and rear with bottle holder | Front and rear with bottle holder |
Glass Holder | 2 at front console | 2 at front console | 2 at front console |
Footrest | |||
Safety | |||
ABS (Anti-Lock Braking System) | |||
Hi Mouth Stop Lamp | |||
Rear Window Defogger | |||
Crash Body Safety GOA | |||
Side Bar Protection | |||
Windshield Glass | Laminated with tint | Laminated with tint | Laminated |
SRS Airbag | Driver and front passenger | ||
Front Seatbelt | 3 ELR 2 positions | 3 ELR 2 positions | 3 ELR 2 positions |
Adjustable Seat Belt | Driver and front passenger | Driver and front passenger | Driver and front passenger |
Absorbing Door Structure | |||
Collapsible Steering Column | |||
Collapsible Brake Pad | |||
Automatic Fuel Cut - Off Valve |
Highlights
-
All new top-of-the-range model "G" that combines exceptional durability with high quality styling and equipment
-
Part of worldwide success story that has seen sales of tens of millions of Hiluxes and counting
-
102bhp 2.5-litre D-4D engine or 163bhp "Landcruiser" 3.0 D-4D engine available
-

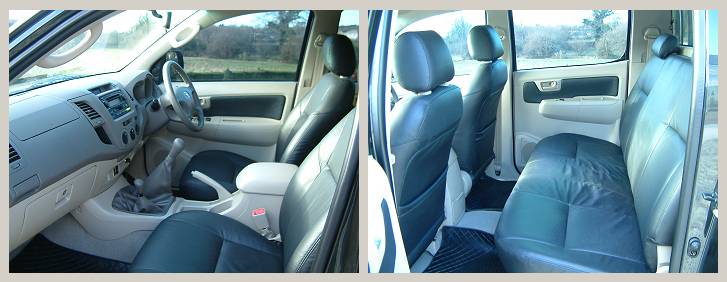

Full leather interior optional
-
In-dash 6 CD auto-changer and radio cassette and CD MP3 Player
-
Tubular chrome rear styling bumper and "Vigo" chrome badging
-
Three models available in both single & double cab 2.5E, 3.0E & top-of-the-range 3.0G model
.
Lower grade J also available
|
|
Vigo Exterior
|
Vigo Interior
|
Vigo Console |
|
Vigo Interior View |
|
|
|
|
|
Vigo Colors in Metallic
Vigo Single Cab Colors
If you are looking for Toyota Hilux Vigo Single Cab Jim Autos Thailand is the place to go. Vigo Single Cab is available in white, Dark Green Metallic and Silver Metallic.
Vigo Extra Cab 4x2 Colors
If you are looking for Toyota Hilux Vigo Extra Cab 4x2 Jim Autos Thailand is the place to go. Vigo Extra Cab is available in Silver Metallic, Dark Red Mica, Beige Mica Metallic (Gold) and Light Green Metallic.
Vigo Extra Cab 4WD Colors
If you are looking for Toyota Hilux Vigo Extra Cab Jim Autos Thailand is the place to go. Vigo Extra Cab 4WD is available in Silver Metallic, Beige Mica Metallic (Gold), Black Mica and Blue Metallic.
Vigo Double Cab Colors
If you are looking for Toyota Hilux Vigo Double Cab Jim Autos Thailand is the place to go. Vigo Double Cab 4x2 is available in Metallic Silver, Metallic Gold, Dark Red Mica, and Light Green Metallic. Vigo Double Cab 4x4 is available in Metallic Black, Metallic Silver, Metallic Gold, Metallic Blue, Metallic Gun (Grey) and Metallic White. Toyota has introduced two new colors in Silky Gold (to replace Gold) and Super Steel (to replace blue) in 2012 Toyota Hilux Vigo.
|
Metallic Black |
|
Metallic Silver |
|
Metallic Gold (Beige) |
|
Metallic Blue |
Please note that Vigo DC is now available in gun metallic and white colors as well.
Vigo Models
Model | Type | CC | Power | System | Transmission |
Vigo Single Cab | 2.5 J Economic | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 2.5 J Economic Metallic | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 2.5 J | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 2.5 J Metallic | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 2.5 J P/S | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 2.5 J P/S Metallic | 2494 | 102 | FR | 5MT |
Vigo Single Cab | 3.0 J | 2982 | 163 | FR | 5MT |
Vigo Single Cab | 3.0J Metallic | 2982 | 163 | FR | 5MT |
Vigo Extra Cab | 2.5 J | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 2.5 J Metallic | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 2.5 J P/S | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 2.5 J P/S Metallic | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 2.5 E Metallic | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 3.0 E Metallic | 2982 | 163 | FR | 5MT |
Vigo Extra Cab | 2.5 G Metallic | 2494 | 102 | FR | 5MT |
Vigo Extra Cab | 2.5 E Metallic 4WD | 2494 | 120 | 4WD | 5MT |
Vigo Extra Cab | 3.0 G Metallic | 2982 | 163 | FR | 5MT |
Vigo Extra Cab | 3.0 E Metallic 4WD | 2982 | 163 | 4WD | 5MT |
Vigo Extra Cab | 3.0 G Metallic 4WD | 2982 | 163 | 4WD | 5MT |
Vigo Double Cab | 2.5J | 2494 | 102 | FR | 5MT |
Vigo Double Cab | 2.5 J Metallic | 2494 | 102 | FR | 5MT |
Vigo Double Cab | 2.5 E Metallic | 2494 | 120 | FR | 5MT |
Vigo Double Cab | 2.5 E Metallic 4WD | 2494 | 120 | 4WD | 5MT |
Vigo Double Cab | 3.0G | 2982 | 163 | FR | 5MT |
Vigo Double Cab | 3.0 E Metallic 4WD | 2982 | 163 | 4WD | 5MT |
Vigo Double Cab | 3.0G 4WD | 2982 | 163 | FR | 4AT |
Vigo Double Cab | 2.7 G Metallic 4WD 4 door Manual | ||||
Vigo Double Cab | 3.0 G Metallic 4WD 4 door Manual | 2982 | 163 | 4WD | 5MT |
Vigo Double Cab | 3.0 G Metallic 4WD 4 door Auto | 2982 | 163 | 4WD | 4AT |
2.5J STANDARD CAB |
2.5J Standard Cab 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Standard Cab Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Standard Cab Power Steering 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Standard Cab Power Steering Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5J-ECO Standard Cab 2494cc 14 DOHC T 120 FR 5M/T |
2.5J-ECO Standard Cab Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5J EXTRA CAB |
2.5J Extra Cab 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Extra Cab Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Extra Cab Power Steering 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Extra Cab Power Steering Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5J DOUBLE CAB |
2.5J Double Cab 2494cc 14 DOHC T 120 FR 5M/T |
2.5J Double Cab 2494cc 14 DOHC T 120 FR 5M/T |
2.5E 2.5G |
2.5E Double Cab Metallic 4WD 2494cc 14 DOHC T 120 4WD 5M/T |
2.5E Double Cab Metallic 2494cc 14 DOHC T 120 FR 5M/T |
2.5E Extra Cab Metallic 4WD 2494cc 14 DOHC T 120 4WD 5M/T |
2.5G Extra Cab Metallic 2494cc 14 DOHC T 120 FR 5M/T |
3.0J |
3.0J Standard Cab 2982cc 14 DOHC T 163 FR 5M/T |
3.0J Standard Cab Metallic 2982cc 14 DOHC T 163 FR 5M/T |
3.0E |
3.0E Extra Cab Metallic 2982cc 14 DOHC T 163 FR 5M/T |
3.0E Extra Cab Metallic 4WD 2982cc 14 DOHC T 163 4WD 5M/T |
3.0E Double Cab Metallic 4WD 2982cc 14 DOHC T 163 4WD 5M/T |
3.0G |
3.0G Extra Cab Metallic 2982cc 14 DOHC T 163 FR 5M/T |
3.0G Extra Cab 4WD Metallic 2982cc 14 DOHC T 163 4WD 5M/T |
3.0G Double Cab Metallic 2982cc 14 DOHC T 163 FR 5M/T |
3.0G Double Cab Metallic Automatic 2982cc 14 DOHC T 163 FR 4A/T |
3.0G Double Cab Metallic 4WD 2982cc 14 DOHC T 163 4WD 5M/T |
3.0G Double Cab Metallic Automatic 4WD 2982cc 14 DOHC T 163 4WD 4A/T |
Hilux Vigo Standard Equipments
Model |
3.0E/3.0G Hilux Vigo SRS ABS |
3.0E/3.0G Hilux Vigo SRS ABS Auto |
Exterior |
|
|
Color key bumper |
|
|
Chrome front grill |
|
|
Chrome door mirror |
|
|
Over fender |
|
|
Front + rear mudguard |
|
|
Chrome door outer handle |
|
|
Side step |
|
|
Rear defroster |
|
|
Rear bumper |
|
|
High mount stop lamp |
|
|
Alloy Wheel |
16" |
16" |
Interior |
|
|
Map lamp |
|
|
Getting on-off grip A pillar |
|
|
Triple meter |
|
|
Digital Clock |
|
|
Radio cassette 4 speaker |
|
|
Full function A/C panel |
|
|
Cup holder |
|
|
Lever type parking brake control |
|
|
Rheostat |
|
|
Power Steering |
|
|
Tilt Steering |
|
|
Intermittent wiper - variable |
|
|
Ignition key with illumination |
|
|
Center door lock |
|
|
Keyless entry system |
|
|
Storage box under front seat |
|
|
Electric door mirror |
|
|
Power window |
|
|
Seat - Fabric |
|
|
Seat - Leather |
|
|
Rear Center armrest |
|
|
Foot Rest |
|
|
Fuel lid opener |
|
|
Key Warning Sound |
|
|
Headlamp Warning Sound |
|
|
Safety Equipments |
|
|
Laminated front windshield |
|
|
Side door impact bar |
|
|
ABS+EBD |
|
|
Rear Windshield Heater |
|
|
4 Seats 3-Point Safety Belt |
|
|
ABS with EBD |
|
|
Airbag |
|
|
Collapsible Steering Wheel |
|
|
Day/Night Mirror |
|
|
4-Step Windshield Wiper |
Speed Adjustable |
Speed Adjustable |
Drivetrain System Signal |
|
|
Door Warning Light |
|
|
Safety Belt Warning Light |
|
|
Baby Safety Lock |
|
|
Remark : All specifications are subject to change without prior notice
=
Standard Equipment,=
Special Equipment,
=
Not Available
Optional Accessories
It is accessories that turn an ordinary vehicle into a "ride" that is the envy of neighbors, friends and peers. Since accessories in Thailand are a fraction of the price they are sold in your county it makes a lot of sense to accessorize the vehicle rightly. We know what accessories sets are most popular in any given country. If you a dealer and your competitor buys a better accessorized vehicle, your customer will pay a few hundred dollars to buy a more beautiful car. Most customers have an instinctual aversion to being penny wise and pound foolish, after they have spend thousands of dollar to acquire bare bones vehicles, they want cool accessories that add to vehicle's safety, beauty, performance and comfort.
Some of our popular accessories are Leather seats, Heater, Canopies, front bumpers, DVD with TV, rear parking sensors, rear view camera, bluetooth mirror, Xenon lamps, Bed-Liners, Side Steps, 20 or 22" chrome rims, light covers, scuff plates, tow bars, etc... For more details see http://thailand-dealer.com/accessories.html.
|
Vigo Doublecab with Canopy |
Optional Leather Interior |
Vigo Accessories
Model |
3.0E/3.0G Hilux Vigo SRS ABS |
3.0E/3.0G Hilux Vigo SRS ABS Auto |
Equipments |
|
|
Color Key Rear Bumper |
|
|
Color Key Side Step |
|
|
CD Player |
|
|
Rear Canopy |
|
|
Heater |
|
|
Leather Seats |
|
|
Stainless Steel A-Bar |
|
|
Front Spotlamps |
|
|
Rear Towbar |
|
|
Trailer Light Socket |
|
|
Roof Rack |
|
|
Remark : All specifications are subject to change without prior notice
=
Standard Equipment,=
Special Equipment,
=
Not Available
Vigo VVT-i Petrol
Toyota's best selling Vigo is also available with a 2.7 VVT-i (variable valve timing-intelligent) petrol engine and standard Automatic gearbox. Please note that Petrol Double CAB 4x4 is only available in the Automatic Transmission in the full grade "G" with all the specifications. It is not available in 4x2 or Manual Transmission. Please note that Petrol Vigo is not readily available and must be ordered from the factory and it takes a few weeks to receive the vehicle.
Jim Modified LHD Vehicle
Since Jim is now offering factory original LHD Toyota Hilux Vigo, there are fewer orders for modified LHD vehicles but there is still interest in modifying the vehicles that are not available as factory original LHD.
Following Hilux Vigo was converted from RHD to LHD by expert Thai craftsmen with original Hilux Vigo LHD vehicle parts and accessories. Can you tell the difference? Our customer in Europe is very satisfied with the result. And yes, this is right outside our showroom lots in Pattanakarn before we had consolidated our 30 showroom lots in our Prawet headquarters. Please see our page on converted LHD vehicles for more information.
Since Jim Autos is now selling factory-original LHD Toyota Vigo, there is no need for conversion. See our LHD Vigo page for pics and specs. Here is a quick peak of factory-original Hilux Vigo:
How may we help you!
Welcome to the website of world's top 4x4 dealer and 4x4 exporter!
Jim Autos Thailand - Thailand's oldest and
largest auto exporter of Toyota Vigo and other 4x4s is here to serve all your
automotive needs. Email us now at
[email protected] for any
questions
or comments.
According to Statcounter, you are the -th visitor to our site since the beginning of 2007.
Please click the button below to add this page to a Social Bookmarks site of your choice.
© 2001-2008 :: Jim Autos Thailand - a division of the Jim Group :: All rights reserved :: [email protected]
| About Us | Vehicles | Accessories | Executives | Testimonials | Mission | Links | Links2 | Links3 | Press | Contact |
Auto Links | More Auto Links | Parts, Rims & Accessories Links | Travel Links | Interesting Links
Toyota
Hilux Vigo |
Mitsubishi L200 Triton |
Nissan Frontier |
Nissan Navara | Toyota Fortuner |
Isuzu DMax |
Isuzu MU-7 | Chevy Colorado | Ford
Ranger |
Mazda BT-50
It is our great pleasure to welcome you to Jim Autos. According to Statcounter, you are the -th visitor to our site.
Our Australia, United Kingdom and Dubai Divisions Jim Autos Australia, UK and Dubai offers all kinds of new and used vehicles from Australia, United Kingdom, Dubai and United States ranging from sedans, small cars, family cars, estate cars station wagons, cabriolets convertibles, executive cars, 4x4 pickups, 4x4 SUVs, coupes, Multi-purpose vehicles (MPVs), vans, trucks to construction and farm machinery from Toyota, Honda, Nissan, Mitsubishi, Lexus, Mazda, Isuzu, Infiniti, Audi, Mercedes Benz, VolksWagen, BMW, Porsche, Alfa Romeo, Fiat, Ferrari, Lamborghini, Maserati, Iveco Trucks, Land Rover, Jaguar, Mini, Aston Martin, Bentley, Lotus, Vauxhall, Rolls Royce, Citroen, Renault Cars, Bugatti, Peugeot, Renault Trucks, Chrysler, Jeep, Ford, Chevrolet, Saab, Volvo, Scania Trucks, Volvo Trucks, DAF Trucks, Hyundai, Ssang Yong, Kia, Seat and Skoda
